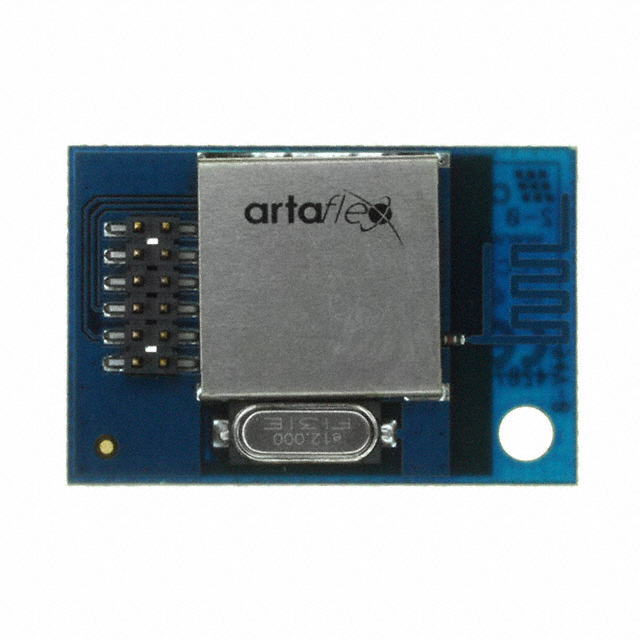

AWP24S
ObsoleteArtaflex Inc.
RF TXRX MOD ISM>1GHZU.FL TH
Deep-Dive with AI
Search across all available documentation for this part.
AWP24S
ObsoleteArtaflex Inc.
RF TXRX MOD ISM>1GHZU.FL TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AWP24S |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Receiving | 23 mA |
| Current - Transmitting | 195 mA |
| Data Rate | 1 Mbps |
| Frequency | 2.4 GHz |
| Modulation | GFSK |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | PCB Module |
| Power - Output | 20 dBm |
| RF Family/Standard | General ISM > 1GHz |
| Sensitivity | -93 dBm |
| Serial Interfaces | SPI |
| Utilized IC / Part | CYRF7936 |
| Voltage - Supply [Max] | 3.3 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AWP24S
General ISM > 1GHz Transceiver Module 2.4GHz Antenna Not Included, U.FL Through Hole
Documents
Technical documentation and resources
No documents available
