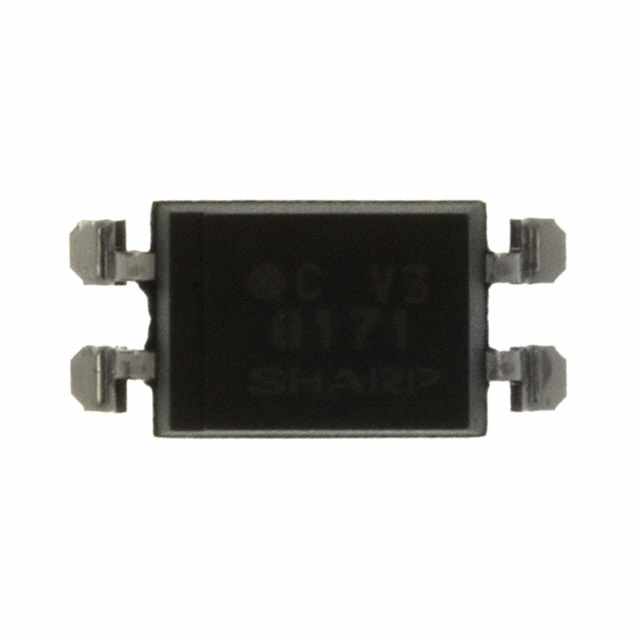

PC81716NIP0F
ObsoleteSharp Microelectronics
OPTOISO 5KV TRANS 4-MINI-FLAT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PC81716NIP0F
ObsoleteSharp Microelectronics
OPTOISO 5KV TRANS 4-MINI-FLAT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PC81716NIP0F |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 10 mA |
| Current - Output / Channel | 50 mA |
| Current Transfer Ratio (Max) | 500 % |
| Current Transfer Ratio (Min) [Min] | 160 % |
| Input Type | DC |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | 1.81 mOhm |
| Package / Case | 4-SMD, Gull Wing |
| Rise / Fall Time (Typ) [custom] | 3 µs |
| Rise / Fall Time (Typ) [custom] | 4 µs |
| Supplier Device Package | 4-Mini-Flat |
| Vce Saturation (Max) | 200 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PC81716NIP0F
Optoisolator Transistor Output 5000Vrms 1 Channel 4-Mini-Flat
Documents
Technical documentation and resources
