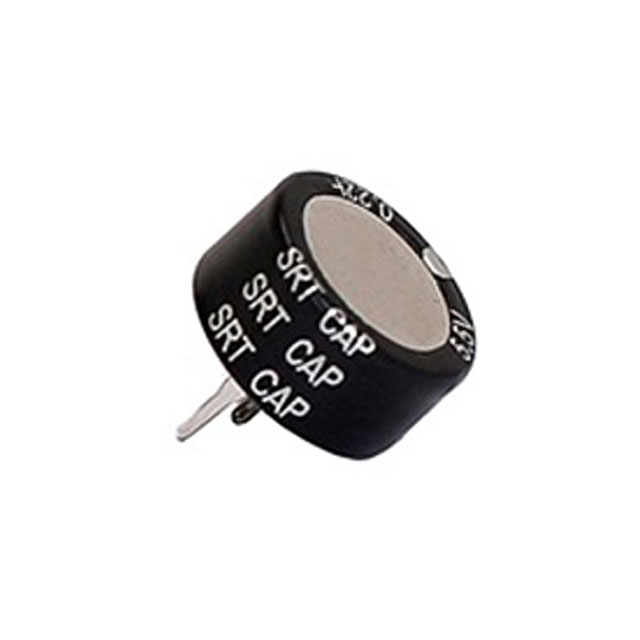

SCE5R5C224
ActiveSruite Electronic Technology (US)
CAP 5.5V -20% +80% 0.22F T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SCE5R5C224
ActiveSruite Electronic Technology (US)
CAP 5.5V -20% +80% 0.22F T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SCE5R5C224 |
|---|---|
| Capacitance | 220 mF |
| ESR (Equivalent Series Resistance) | 40 Ohm |
| Height - Seated (Max) [Max] | 7 mm |
| Height - Seated (Max) [Max] | 0.276 " |
| Lead Spacing | 5 mm |
| Lead Spacing | 0.197 in |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Radial, Can |
| Size / Dimension [diameter] | 0.531 in |
| Size / Dimension [diameter] | 13.5 mm |
| Termination | PC Pins |
| Tolerance [Max] | 80 % |
| Tolerance [Min] | -20 % |
| Voltage - Rated | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 5 | $ 1.78 | |
| 10 | $ 1.76 | |||
| 50 | $ 1.71 | |||
| 100 | $ 1.67 | |||
| 500 | $ 1.62 | |||
| 1000 | $ 1.55 | |||
| 2500 | $ 1.50 | |||
| 5000 | $ 1.40 | |||
Description
General part information
SCE5R5C224
220 mF (EDLC) Supercapacitor 5.5 V Radial, Can 40Ohm @ 1kHz 1000 Hrs @ 70°C
