Technical Specifications
Parameters and characteristics for this part
| Specification | PTSLR12066V650 |
|---|---|
| Approval Agency | cURus, TUV |
| Current - Hold (Ih) (Max) [Max] | 6.5 A |
| Current - Max [Max] | 50 A |
| Current - Trip (It) | 13 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3216 Metric |
| Package / Case | 1206 |
| Package / Case | Concave |
| Resistance - Initial (Ri) (Min) [Min] | 1 mOhms |
| Resistance - Post Trip (R1) (Max) [Max] | 9 mOhms |
| Size / Dimension [x] | 0.138 " |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 0.071 in |
| Size / Dimension [y] | 1.8 mm |
| Thickness (Max) [Max] | 0.051 in |
| Thickness (Max) [Max] | 1.3 mm |
| Time to Trip | 5 s |
| Voltage - Max [Max] | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.56 | |
| 5 | $ 0.47 | |||
| 10 | $ 0.43 | |||
| 50 | $ 0.36 | |||
| 100 | $ 0.33 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.28 | |||
| Digi-Reel® | 1 | $ 0.56 | ||
| 5 | $ 0.47 | |||
| 10 | $ 0.43 | |||
| 50 | $ 0.36 | |||
| 100 | $ 0.33 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.28 | |||
| Tape & Reel (TR) | 3500 | $ 0.28 | ||
Description
General part information
PTSLR12066V650

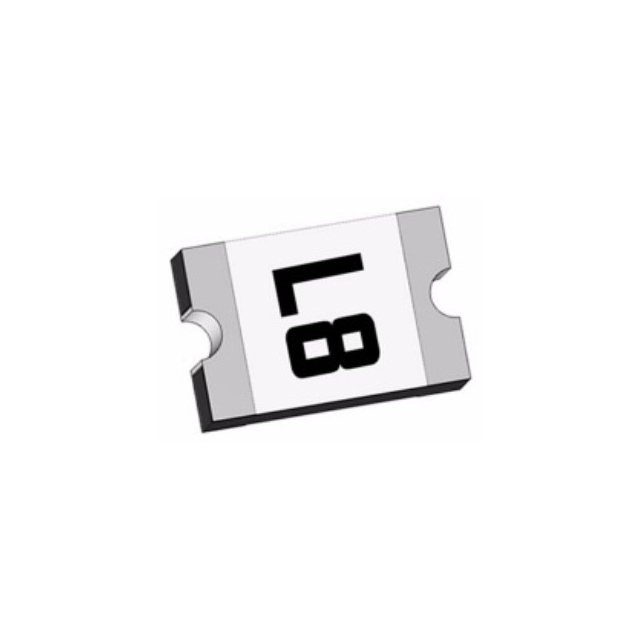

PTC Resettable Fuse 6V 6.5 A Ih Surface Mount 1206 (3216 Metric), Concave
