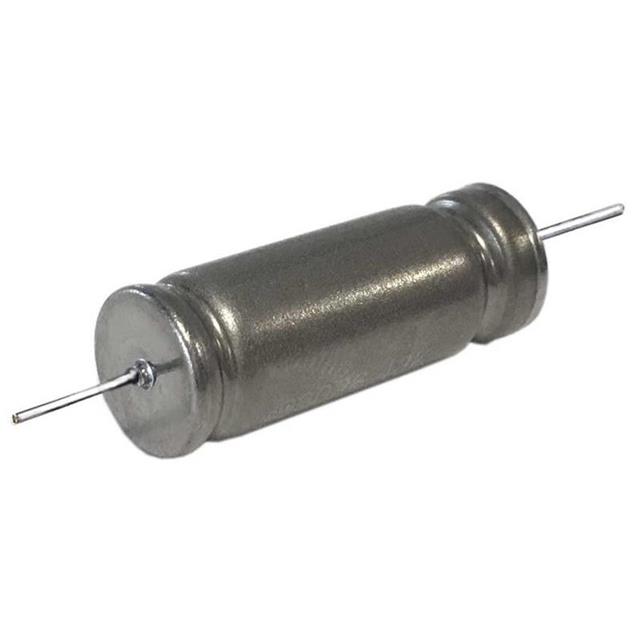

HC2D100471HT
ActiveQuantic Evans
WET TANTALUM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HC2D100471HT
ActiveQuantic Evans
WET TANTALUM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HC2D100471HT |
|---|---|
| Capacitance | 470 µF |
| ESR (Equivalent Series Resistance) | 700 mOhm |
| Features | Hybrid Wet Tantalum |
| Manufacturer Size Code | D |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Can, Axial |
| Size / Dimension [diameter] | 9.52 mm |
| Size / Dimension [diameter] | 0.375 " |
| Size / Dimension [x] | 26.97 mm |
| Size / Dimension [x] | 1.062 " |
| Tolerance | 20 % |
| Type | Hermetically Sealed |
| Voltage - Rated | 60 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 235.00 | |
| 10 | $ 179.00 | |||
| 50 | $ 164.00 | |||
Description
General part information
HC2D100471HT
470 µF Hermetically Sealed Tantalum Capacitors 60 V Axial, Can 700mOhm
