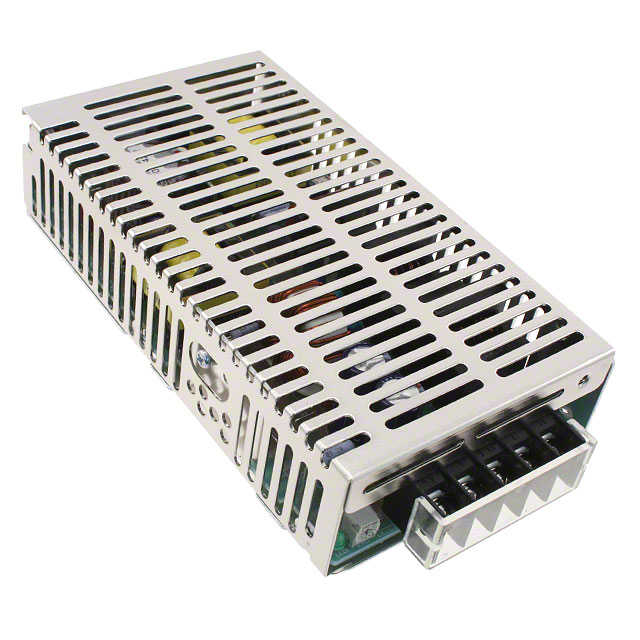

SPN75-48S
ObsoleteVolgen + Furuno
AC/DC CONVERTER 48V 75W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SPN75-48S
ObsoleteVolgen + Furuno
AC/DC CONVERTER 48V 75W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SPN75-48S |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, UL, CSA, cUL |
| Current - Output 1 | 1.6 A |
| Efficiency | 83 % |
| Features | PFC, Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 75 W |
| Size / Dimension [x] | 162 mm |
| Size / Dimension [x] | 6.38 in |
| Size / Dimension [y] | 88 mm |
| Size / Dimension [y] | 3.47 in |
| Size / Dimension [z] | 1.52 in |
| Size / Dimension [z] | 38.5 mm |
| Type | Enclosed |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SPN75-48S
Enclosed AC DC Converters 1 Output 48V 85 ~ 264 VAC Input
