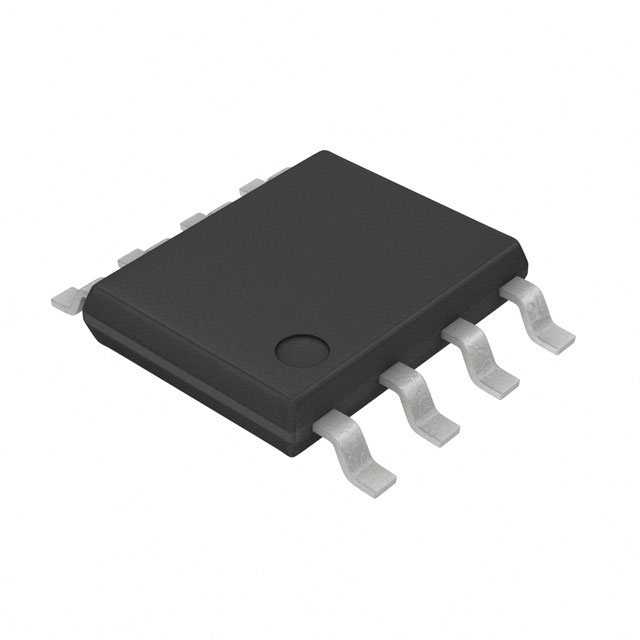

V3020TP8A+
EM Microelectronic
IC RTC CLK/CALENDAR SER 8TSSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
V3020TP8A+
EM Microelectronic
IC RTC CLK/CALENDAR SER 8TSSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | V3020TP8A+ |
|---|---|
| Current - Timekeeping (Max) [Max] | 0.8 µA |
| Features | Alarm, RAM, Leap Year |
| Interface | 3-Wire Serial |
| Memory Size | 1 B |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-TSSOP |
| Package / Case [custom] | 0.173 " |
| Package / Case [custom] | 4.4 mm |
| Supplier Device Package | 8-TSSOP |
| Time Format | HH:MM:SS:hh (12/24 hr) |
| Type | Clock/Calendar |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1000 | $ 1.68 | |
| 2500 | $ 1.60 | |||
| 5000 | $ 1.54 | |||
Description
General part information
V3020TP8A+
Real Time Clock (RTC) IC Clock/Calendar 1B 3-Wire Serial 8-TSSOP (0.173", 4.40mm Width)
