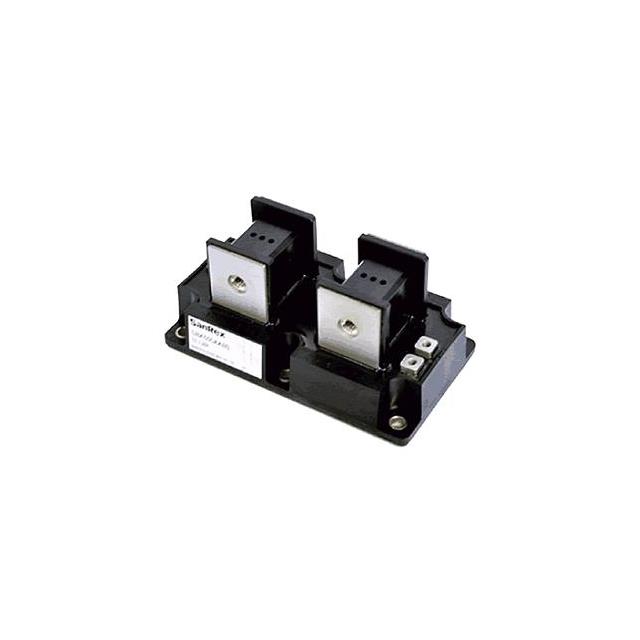

SBB500AA160
ActiveSanRex Corporation
THYRISTOR MODULE 1600V 500A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SBB500AA160
ActiveSanRex Corporation
THYRISTOR MODULE 1600V 500A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SBB500AA160 |
|---|---|
| Current - Gate Trigger (Igt) (Max) [Max] | 200 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) [Max] | 10000 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) [Min] | 9100 A |
| Current - On State (It (AV)) (Max) [Max] | 500 A |
| Current - On State (It (RMS)) (Max) | 785 A |
| Mounting Type | Chassis Mount |
| Number of SCRs, Diodes | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Structure | Independent - SCR/Diode |
| Voltage - Off State | 1.6 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 2 | $ 348.39 | |
| 10 | $ 326.31 | |||
| 25 | $ 314.05 | |||
Description
General part information
SBB500AA160
SCR Module 1.6 kV 785 A Independent - SCR/Diode Chassis Mount Module
Documents
Technical documentation and resources
