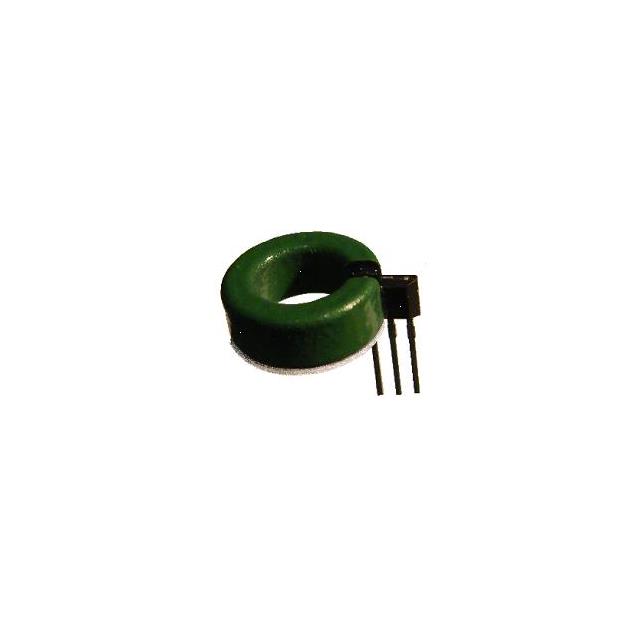

RAZC-114XTCN
ActiveRaztec Sensors
110A CURRENT SENSOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RAZC-114XTCN
ActiveRaztec Sensors
110A CURRENT SENSOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RAZC-114XTCN |
|---|---|
| Current - Sensing | 110 A |
| Current - Supply (Max) [Max] | 12 mA |
| For Measuring | AC/DC |
| Frequency | 190 kHz |
| Linearity | 0.3 % |
| Number of Channels | 1 |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Analog Voltage |
| Polarization | Bidirectional |
| Sensitivity | 17.6 mV/A |
| Sensor Type | Hall Effect, Open Loop |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.71 | |
| 100 | $ 8.33 | |||
| 1000 | $ 7.98 | |||
| 10000 | $ 7.63 | |||
Description
General part information
RAZC-114XTCN
Current Sensor 110A 1 Channel Hall Effect, Open Loop Bidirectional
