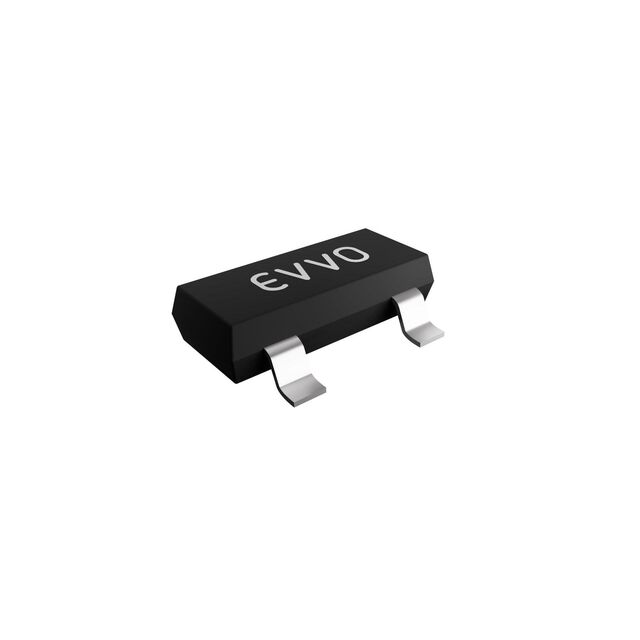

2SC3356
ActiveEVVO
RF TRANS NPN 12V 7GHZ SOT23
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2SC3356
ActiveEVVO
RF TRANS NPN 12V 7GHZ SOT23
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2SC3356 |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 100 mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | 50 |
| Frequency - Transition | 7 GHz |
| Mounting Type | Surface Mount |
| Noise Figure (dB Typ @ f) | 1.1 dB |
| Operating Temperature | 150 °C |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Power - Max [Max] | 200 mW |
| Supplier Device Package | SOT-23-3 |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.03 | |||
| 25 | $ 0.03 | |||
| 100 | $ 0.03 | |||
| 250 | $ 0.02 | |||
| 500 | $ 0.02 | |||
| 1000 | $ 0.02 | |||
| Digi-Reel® | 1 | $ 0.10 | ||
| 10 | $ 0.03 | |||
| 25 | $ 0.03 | |||
| 100 | $ 0.03 | |||
| 250 | $ 0.02 | |||
| 500 | $ 0.02 | |||
| 1000 | $ 0.02 | |||
| Tape & Reel (TR) | 3000 | $ 0.01 | ||
| 6000 | $ 0.01 | |||
| 15000 | $ 0.01 | |||
| 30000 | $ 0.01 | |||
| 75000 | $ 0.01 | |||
Description
General part information
2SC3356
RF Transistor NPN 12V 100mA 7GHz 200mW Surface Mount SOT-23-3
