SV-24292-FF-48
ActiveMaury Microwave
NMD2.4MM FEMALE TO 2.92MM FEMALE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SV-24292-FF-48 |
|---|---|
| 1st Connector | 2.4mm Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | 2.92 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Connector Impedance | 50 Ohms |
| Frequency - Max [Max] | 40 GHz |
| Length | 1200 mm |
| Length | 4 ft |
| Length | 48 in |
| Overall Impedance | 50 Ohms |
| Style [Max] | 2.92 mm |
| Style [Min] | 2.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 3052.00 | |
| 5 | $ 2838.00 | |||
| 10 | $ 2687.00 | |||
Description
General part information
SV-24292-FF-48

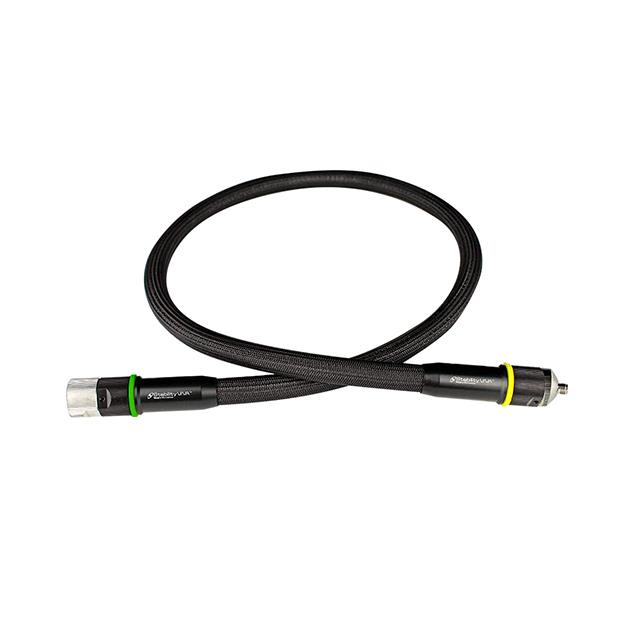

Cable Assembly Coaxial 2.4mm to 2.92mm 48.0" (1.2m) 4.0'
