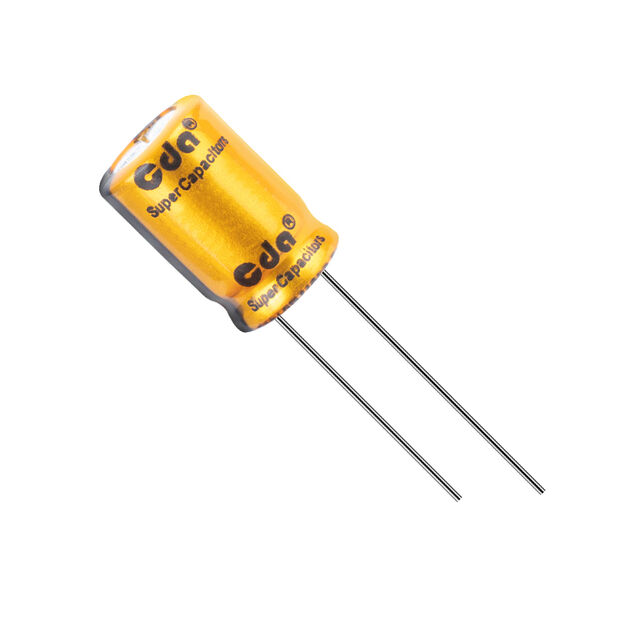

CHV-2R7107R-TWV
ActiveCDA (Zhifengwei Technology)
2.7V 100F 18X60 EDLC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CHV-2R7107R-TWV
ActiveCDA (Zhifengwei Technology)
2.7V 100F 18X60 EDLC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CHV-2R7107R-TWV |
|---|---|
| Capacitance | 100 F |
| ESR (Equivalent Series Resistance) | 15 mOhm |
| Height - Seated (Max) [Max] [z] | 61.5 mm |
| Height - Seated (Max) [Max] [z] | 2.421 in |
| Lead Spacing | 0.394 in |
| Lead Spacing | 10 mm |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can |
| Size / Dimension [diameter] | 0.709 " |
| Size / Dimension [diameter] | 18 mm |
| Termination | PC Pins |
| Voltage - Rated | 2.7 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 7.66 | |
| 10 | $ 5.71 | |||
| 50 | $ 4.93 | |||
| 150 | $ 4.57 | |||
| 600 | $ 4.25 | |||
| 1050 | $ 4.15 | |||
Description
General part information
CHV-2R7107R-TWV
100 F (EDLC) Supercapacitor 2.7 V Radial, Can 15mOhm @ 1kHz 1000 Hrs @ 65°C
