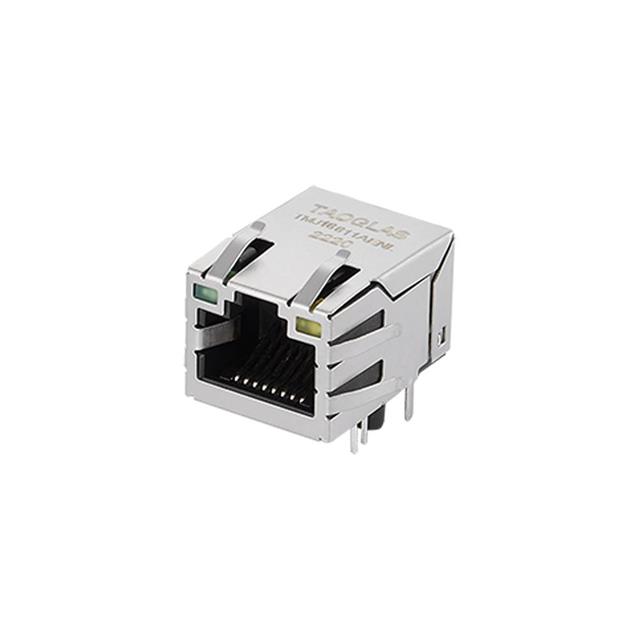

TMJ16611AENL
ActiveTAOGLAS
CONN JACK 1PORT 100 BASE-T
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMJ16611AENL
ActiveTAOGLAS
CONN JACK 1PORT 100 BASE-T
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMJ16611AENL |
|---|---|
| Applications | 10/100 Base-T, AutoMDIX |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.152 Ám |
| Contact Finish Thickness | 6 Áin |
| Contact Material | Phosphor Bronze |
| Height Above Board | 13.45 mm |
| Height Above Board | 0.53 in |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| LED Color | Yellow, Green |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 90 ° |
| Shield Material | Stainless Steel |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Up |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.95 | |
| 100 | $ 4.09 | |||
| 500 | $ 3.97 | |||
Description
General part information
TMJ16611AENL
1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
