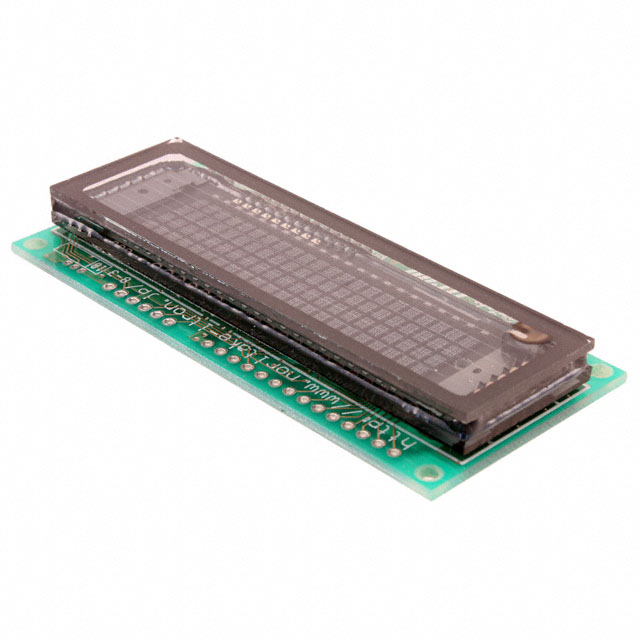

CU22042-Y100
ActiveNoritake U.S.A., Inc.
VFD CHARACTER 22X4 2.35MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CU22042-Y100
ActiveNoritake U.S.A., Inc.
VFD CHARACTER 22X4 2.35MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CU22042-Y100 |
|---|---|
| Character Size [y] | 1.66 mm |
| Character Size [z] | 2.35 mm |
| Display Format [x] | 22 |
| Display Format [y] | 4 |
| Display Type | Character |
| Format [x] | 5 Dots |
| Format [y] | 8 Dots |
| Interface | Parallel/Serial |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline L x W x H [x] | 80 mm |
| Outline L x W x H [y] | 36 mm |
| Outline L x W x H [z] | 8.5 mm |
| Viewing Area [x] | 52.5 mm |
| Viewing Area [y] | 11.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 24 | $ 107.91 | |
Description
General part information
CU22042-Y100
Vacuum Fluorescent Display (VFD) 22 x 4 Character 5V Parallel/Serial 80.00mm x 36.00mm x 8.50mm
