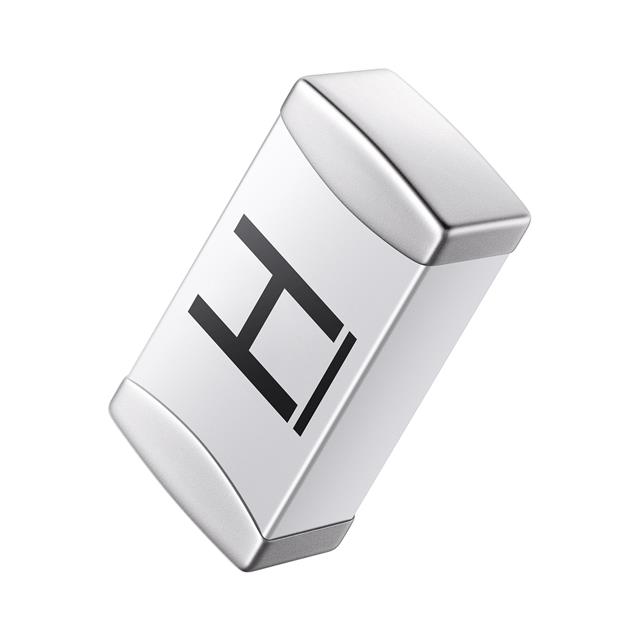

CRU CQ12LH 10A 24V
ActiveConquer
FUSE BOARD MOUNT 10A 24VDC 1206
Deep-Dive with AI
Search across all available documentation for this part.
CRU CQ12LH 10A 24V
ActiveConquer
FUSE BOARD MOUNT 10A 24VDC 1206
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CRU CQ12LH 10A 24V |
|---|---|
| Breaking Capacity @ Rated Voltage | 150 A |
| Current Rating (Amps) | 10 A |
| DC Cold Resistance | 0.006 Ohms |
| Fuse Type | Board Mount |
| Melting I²t | 12 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Response Time | Slow Blow |
| Size / Dimension [x] | 0.122 " |
| Size / Dimension [x] | 3.1 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Size / Dimension [z] | 0.9 mm |
| Size / Dimension [z] | 0.035 in |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.44 | |
| 5 | $ 0.43 | |||
| 10 | $ 0.41 | |||
| 50 | $ 0.35 | |||
| 100 | $ 0.29 | |||
| 250 | $ 0.26 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
| Digi-Reel® | 1 | $ 0.44 | ||
| 5 | $ 0.43 | |||
| 10 | $ 0.41 | |||
| 50 | $ 0.35 | |||
| 100 | $ 0.29 | |||
| 250 | $ 0.26 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
| Tape & Reel (TR) | 4000 | $ 0.19 | ||
| 8000 | $ 0.18 | |||
| 12000 | $ 0.17 | |||
| 20000 | $ 0.16 | |||
Description
General part information
CRU CQ12LH 10A 24V
10 A AC 24 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
