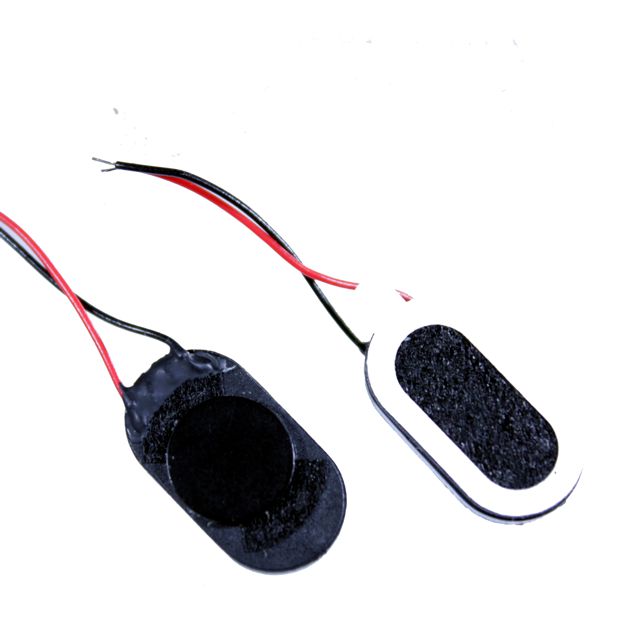

BMS1018-11C-08H05RW025
ActiveBeStar Technologies, Inc.
SPEAKER 8OHM 800MW 86DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BMS1018-11C-08H05RW025
ActiveBeStar Technologies, Inc.
SPEAKER 8OHM 800MW 86DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BMS1018-11C-08H05RW025 |
|---|---|
| Efficiency - dBA | 86 dBA |
| Efficiency - Testing | 100mW/100cm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 1400 Hz |
| Frequency Range [Max] | 15 kHz |
| Frequency Range [Min] | 1.4 kHz |
| Height - Seated (Max) [Max] | 0.157 in |
| Height - Seated (Max) [Max] | 4 mm |
| Impedance | 8 Ohms |
| Material - Cone | Polyethylene Naphthalate (PEN) |
| Material - Magnet | Nd-Fe-B |
| Power - Max [Max] | 1 W |
| Power - Rated | 0.8 W |
| Shape | Rectangle |
| Size / Dimension [x] | 18 mm |
| Size / Dimension [x] | 0.709 in |
| Size / Dimension [y] | 10 mm |
| Size / Dimension [y] | 0.394 in |
| Technology | Magnetic |
| Termination | Wire Leads |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 5 | $ 14.40 | |
| 25 | $ 9.60 | |||
| 50 | $ 7.20 | |||
| 100 | $ 4.80 | |||
Description
General part information
BMS1018-11C-08H05RW025
8 Ohms General Purpose Speaker 800 mW 1.4 kHz ~ 15 kHz Rectangle
