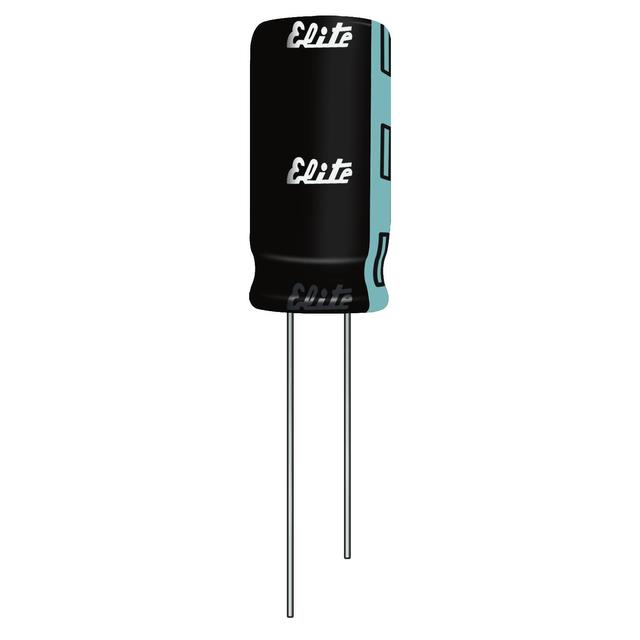

PF1C101MNN0511U
ActiveChinsan (Elite)
CAP ALUM 100UF 20% 16V RADIAL TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PF1C101MNN0511U
ActiveChinsan (Elite)
CAP ALUM 100UF 20% 16V RADIAL TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PF1C101MNN0511U |
|---|---|
| Applications | General Purpose |
| Capacitance | 100 µF |
| Height - Seated (Max) [Max] | 0.492 in |
| Height - Seated (Max) [Max] | 12.5 mm |
| Lead Spacing | 2 mm |
| Lead Spacing | 0.079 in |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can |
| Polarization | Polar |
| Ripple Current @ High Frequency | 150 mA |
| Ripple Current @ Low Frequency | 100 mA |
| Size / Dimension [diameter] | 5 mm |
| Size / Dimension [diameter] | 0.197 " |
| Tolerance | 20 % |
| Voltage - Rated | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.07 | |
Description
General part information
PF1C101MNN0511U
100 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
