H6064HC-6P-WHT
ActiveIntegra Enclosures
ENCLOSURE PLAS 6.54"L X 6.54"W
Deep-Dive with AI
Search across all available documentation for this part.
H6064HC-6P-WHT
ActiveIntegra Enclosures
ENCLOSURE PLAS 6.54"L X 6.54"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H6064HC-6P-WHT |
|---|---|
| Area (L x W) [custom] | 42.8 in² |
| Area (L x W) [custom] | 276 cm² |
| Color | White, Clear Cover/Door |
| Container Type | Enclosure |
| Design | Hinged Door, Lid |
| Height [z] | 138.94 mm |
| Height [z] | 5.47 in |
| Material | Plastic, Polycarbonate (PC) |
| Material Flammability Rating | UL94 5VA, UL94 V-0 |
| Ratings | NEMA 6P, IP66, NEMA 4X, IP68 |
| Size / Dimension [x] | 166.12 mm |
| Size / Dimension [x] | 6.54 in |
| Size / Dimension [y] | 166.12 mm |
| Size / Dimension [y] | 6.54 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 81.81 | |
| 5 | $ 76.36 | |||
| 10 | $ 74.99 | |||
| 25 | $ 73.63 | |||
| 50 | $ 72.54 | |||
| 100 | $ 70.90 | |||
Description
General part information
H6064HC-6P-WHT

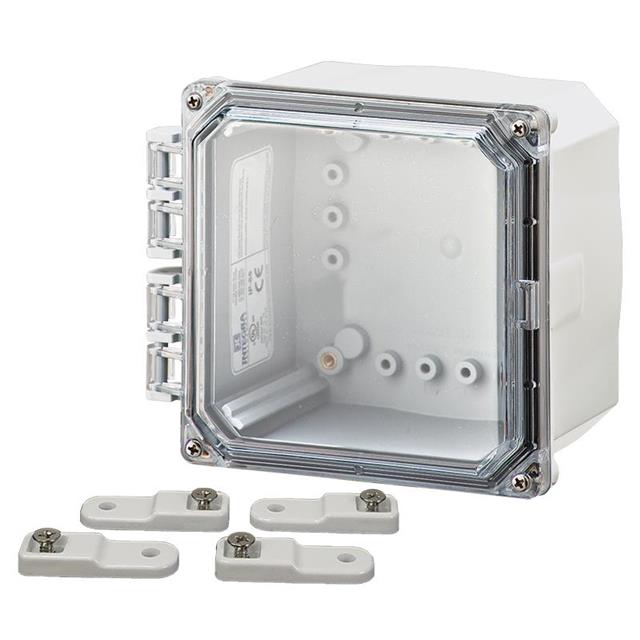

Enclosure Plastic, Polycarbonate (PC) White, Clear Cover/Door Hinged Door, Lid 6.540" L x 6.540" W (166.12mm x 166.12mm) X 5.470" (138.94mm)
Documents
Technical documentation and resources
No documents available
