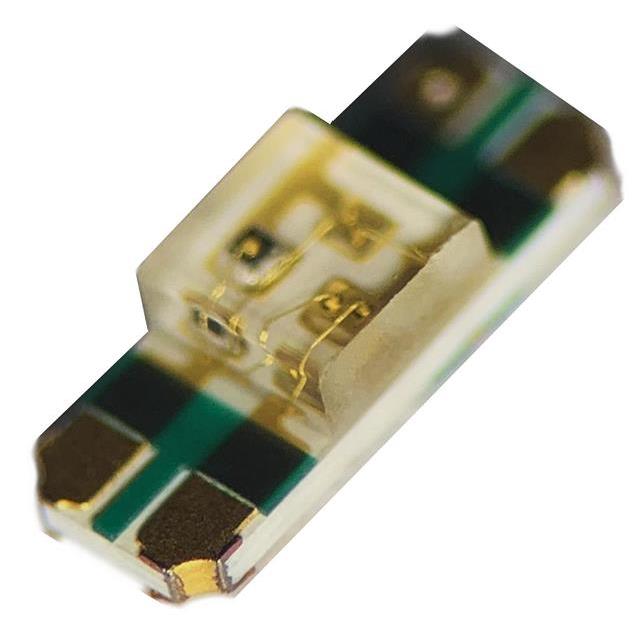

B26B3RGB-20C000213U1930
ActiveHarvatek Corporation
LED RGB CLEAR 1205 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B26B3RGB-20C000213U1930
ActiveHarvatek Corporation
LED RGB CLEAR 1205 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | B26B3RGB-20C000213U1930 |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] | 0.9 mm |
| Lens Size | 1.2 mm |
| Lens Style | Square |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 71.5 mcd |
| Millicandela Rating [custom] | 71.5 mcd |
| Millicandela Rating [custom] | 285 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1205 |
| Package / Case | 3212 Metric |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1.2 mm |
| Supplier Device Package | 1205 |
| Viewing Angle | 155 °, 145 °, 140 °, 125 °, 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V, 3.3 V, 2 V |
| Wavelength - Dominant [custom] | 624 nm |
| Wavelength - Dominant [custom] | 470 nm |
| Wavelength - Dominant [custom] | 525 nm |
| Wavelength - Peak [custom] | 520 nm |
| Wavelength - Peak [custom] | 632 nm |
| Wavelength - Peak [custom] | 468 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.25 | |
| Digi-Reel® | 1 | $ 0.25 | ||
| Tape & Reel (TR) | 3000 | $ 0.24 | ||
Description
General part information
B26B3RGB-20C000213U1930
Red, Green, Blue (RGB) 624nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.3V Green, 3.3V Blue 1205 (3212 Metric)
