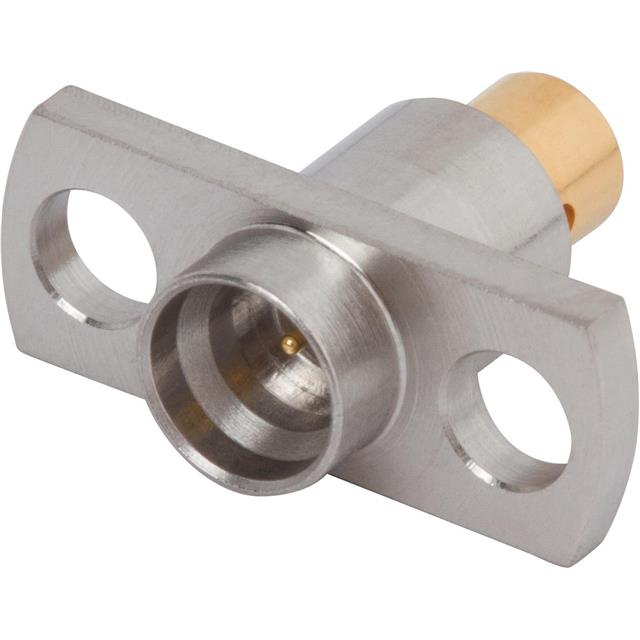

SF1233-6000
ActiveAmphenol SV Microwave
CONN SMP PLUG STR 50OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SF1233-6000
ActiveAmphenol SV Microwave
CONN SMP PLUG STR 50OHM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SF1233-6000 |
|---|---|
| Body Material | Stainless Steel |
| Cable Group | Flexible |
| Cable Group | 0.047 in |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Features | Full Detent |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mounting Feature | Flange |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 50 | $ 54.54 | |
Description
General part information
SF1233-6000
SMP Connector Plug, Male Pin 50 Ohms Panel Mount Solder
