MP915-200-1%
ActiveCaddock Electronics Inc.
RES 200 OHM 1% 15W TO126
Deep-Dive with AI
Search across all available documentation for this part.
MP915-200-1%
ActiveCaddock Electronics Inc.
RES 200 OHM 1% 15W TO126
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MP915-200-1% |
|---|---|
| Composition | Thick Film |
| Features | Non-Inductive, Moisture Resistant |
| Height - Seated (Max) | 11.44 mm |
| Height - Seated (Max) [Max] [z] | 0.45 in |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | TO-126-2 |
| Power (Watts) | 15 W |
| Resistance | 200 Ohms |
| Size / Dimension [x] | 0.32 in |
| Size / Dimension [x] | 8.12 mm |
| Size / Dimension [y] | 2.79 mm |
| Size / Dimension [y] | 0.11 in |
| Supplier Device Package | TO-126 |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.92 | |
| 10 | $ 4.41 | |||
| 50 | $ 3.40 | |||
| 100 | $ 3.09 | |||
| 500 | $ 2.55 | |||
| 1000 | $ 2.37 | |||
Description
General part information
MP915-200-1%

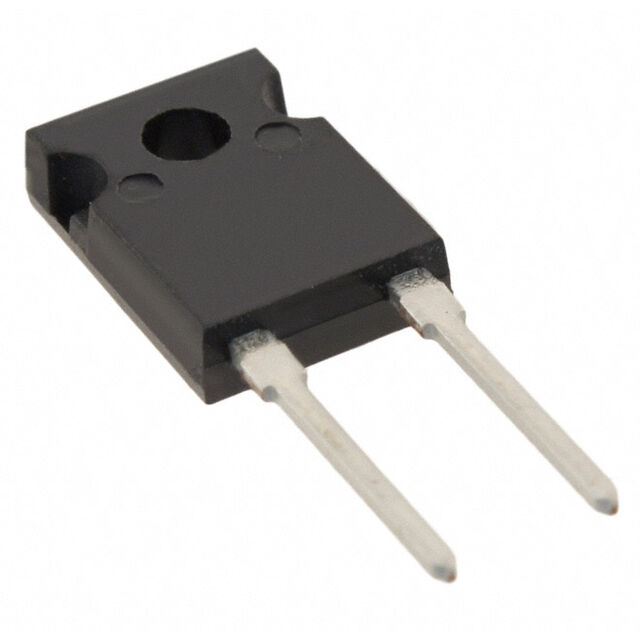

200 Ohms ±1% 15W Through Hole Resistor TO-126-2 Moisture Resistant, Non-Inductive Thick Film
Documents
Technical documentation and resources
No documents available
