400084-03-4
ActiveN2Power
XL275-12DC
Deep-Dive with AI
Search across all available documentation for this part.
400084-03-4
ActiveN2Power
XL275-12DC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 400084-03-4 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, DEMKO, CE, UKCA |
| Current - Output (Max) | 22.9 A |
| Current - Output (Max) | 1 A |
| Efficiency | 91 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 287 W |
| Size / Dimension [x] | 5 in |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [y] | 3 " |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [z] | 38.1 mm |
| Size / Dimension [z] | 1.5 " |
| Standard Number | 60950-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input (Max) [Max] | 76 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 190.96 | |
Description
General part information
400084-03-4

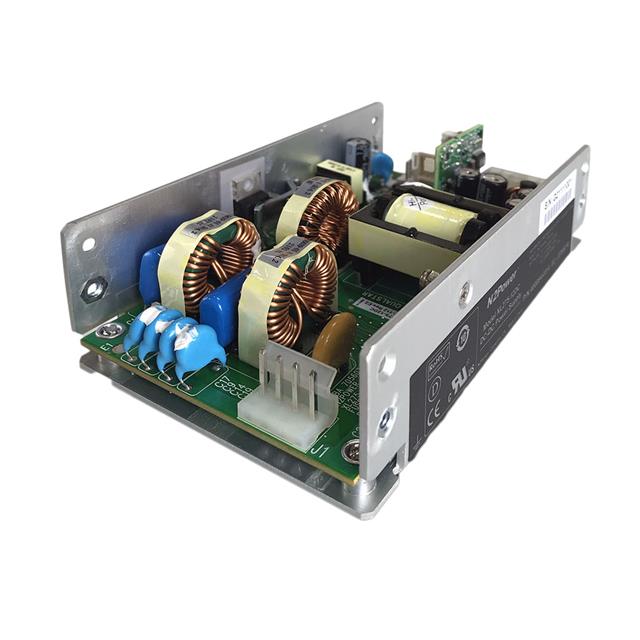

Open Frame DC DC Converter 2 Output 12V 12V 22.9A, 1A 76V Input
