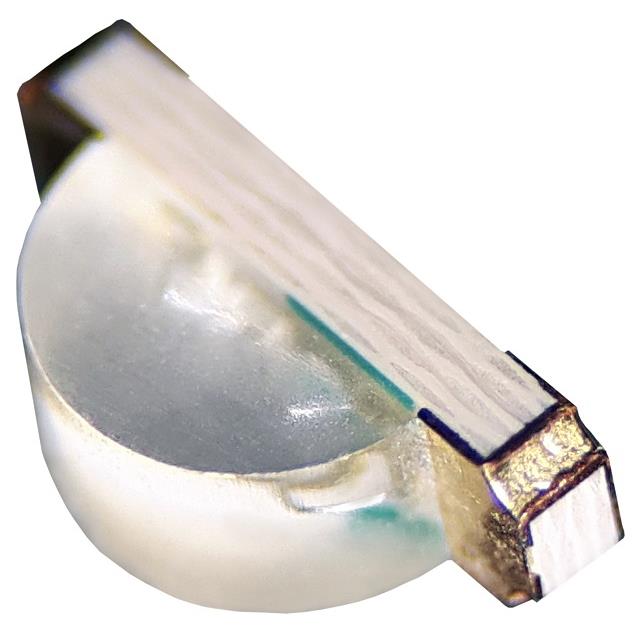

B1101NG--20C000133U1930
ActiveHarvatek Corporation
LED GREEN CLEAR 1204 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B1101NG--20C000133U1930
ActiveHarvatek Corporation
LED GREEN CLEAR 1204 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | B1101NG--20C000133U1930 |
|---|---|
| Color | Green |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 1.6 mm |
| Lens Size [diameter] | 2 mm |
| Lens Style | Rectangle with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 285 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 3210 Metric |
| Package / Case | 1204 |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1 mm |
| Supplier Device Package | 1204 |
| Viewing Angle | 115 °, 140 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength - Dominant [custom] | 527 nm |
| Wavelength - Peak | 520 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.11 | |
| Digi-Reel® | 1 | $ 0.11 | ||
| Tape & Reel (TR) | 3000 | $ 0.11 | ||
Description
General part information
B1101NG--20C000133U1930
Green 527nm LED Indication - Discrete 3.3V 1204 (3210 Metric)
