CA55D6R3K477TA
ActiveXiangJiang
CAP TANT POLY 470UF 6.3V 2917
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CA55D6R3K477TA
ActiveXiangJiang
CAP TANT POLY 470UF 6.3V 2917
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CA55D6R3K477TA |
|---|---|
| Capacitance | 470 µF |
| ESR (Equivalent Series Resistance) | 100 mOhms |
| Features | General Purpose |
| Height - Seated (Max) [Max] [z] | 0.13 " |
| Height - Seated (Max) [Max] [z] | 3.3 mm |
| Manufacturer Size Code | D |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 7343 Metric |
| Package / Case | 2917 |
| Size / Dimension [x] | 0.287 " |
| Size / Dimension [x] | 7.3 mm |
| Size / Dimension [y] | 4.3 mm |
| Size / Dimension [y] | 0.169 " |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 6.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CA55D6R3K477TA

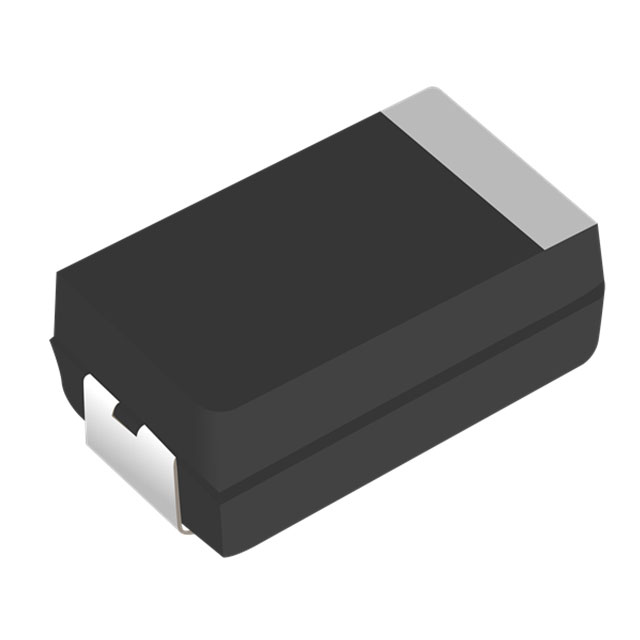

470 µF Molded Tantalum Polymer Capacitor 6.3 V 2917 (7343 Metric) 100mOhm
