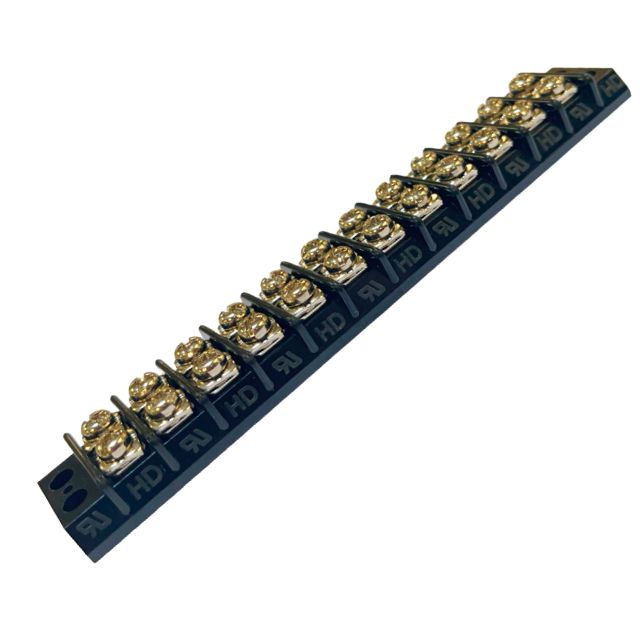

HD-10A-12PH
ActiveBlockMaster Electronics
DOUBLE ROW, 9.5MM (0.375") 12 PO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HD-10A-12PH
ActiveBlockMaster Electronics
DOUBLE ROW, 9.5MM (0.375") 12 PO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HD-10A-12PH |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | Closed |
| Color | Black |
| Current Rating (Amps) | 10 A |
| Features | Flange |
| Material - Insulation | Phenol Formaldehyde (Phenolic) |
| Mounting Type | Panel, Chassis |
| Number of Circuits | 12 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.374 in |
| Pitch [x] | 9.5 mm |
| Terminal Block Type | Barrier Block |
| Terminal Screw Finish | Nickel |
| Terminal Screw Material | Steel |
| Top Termination | Screws |
| Voltage Rating | 250 VAC |
| Wire Gauge [Max] | 18 AWG |
| Wire Gauge [Min] | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 17.72 | |
Description
General part information
HD-10A-12PH
12 Circuit 0.374" (9.50mm) Barrier Block Connector Screws
