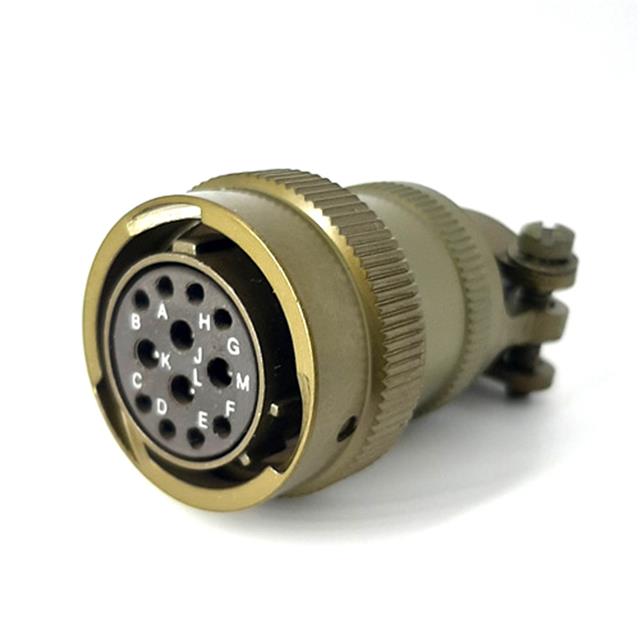

MSW06E14-12S-SR
ActiveMilspecwest, LLC
CABLE PLUG, ENVIRONMENTAL, WITH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSW06E14-12S-SR
ActiveMilspecwest, LLC
CABLE PLUG, ENVIRONMENTAL, WITH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSW06E14-12S-SR |
|---|---|
| Applications | Military |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Cadmium |
| Current Rating (Amps) | 13 A, 7.5 A |
| Fastening Type | Bayonet Lock |
| Features | Strain Relief |
| Ingress Protection | Environment Resistant |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 12 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Finish | Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert | 14-12 |
| Termination | Solder |
| Voltage Rating | 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 25.02 | |
| 10 | $ 23.52 | |||
| 25 | $ 22.02 | |||
| 100 | $ 20.52 | |||
Description
General part information
MSW06E14-12S-SR
12 Position Circular Connector Plug, Female Sockets Solder
