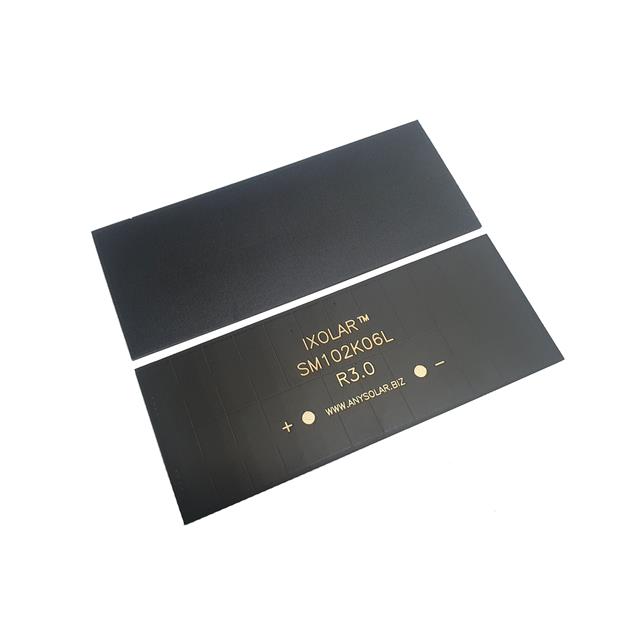

SM102K06L
ActiveANYSOLAR Ltd
SOLAR CELL GEN3 4.15V 1369.4MW
Deep-Dive with AI
Search across all available documentation for this part.
SM102K06L
ActiveANYSOLAR Ltd
SOLAR CELL GEN3 4.15V 1369.4MW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM102K06L |
|---|---|
| Current - Short Circuit (Isc) | 436 mA |
| Current @ Pmpp | 409 mA |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Cells |
| Power (Watts) - Max [Max] | 1.3694 W |
| Size / Dimension [x] | 5.236 " |
| Size / Dimension [x] | 133 mm |
| Size / Dimension [y] | 2.047 " |
| Size / Dimension [y] | 52 mm |
| Size / Dimension [z] | 2.1 mm |
| Size / Dimension [z] | 0.083 in |
| Type | Monocrystalline |
| Voltage - Open Circuit | 4.15 V |
| Voltage @ Pmpp | 3.35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.07 | |
| 40 | $ 22.34 | |||
| 120 | $ 20.28 | |||
Description
General part information
SM102K06L
Monocrystalline Solar Cell 1.3694 W 4.15 V
Documents
Technical documentation and resources
No documents available
