Technical Specifications
Parameters and characteristics for this part
| Specification | LS17500 |
|---|---|
| Battery Cell Size | A |
| Battery Chemistry | Lithium Thionyl Chloride, Lithium |
| Capacity | 3.6 Ah |
| Discharge Rate | 100 mA |
| Shelf Life | 12 Months |
| Shelf Life Start | Date of Manufacture |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Size / Dimension [diameter] | 17 mm, 17.2 mm |
| Size / Dimension [diameter] | 0.67 in, 0.68 " |
| Size / Dimension [z] | 1.99 in, 2 " |
| Size / Dimension [z] | 50.5 mm, 50.8 mm |
| Storage/Refrigeration Temperature | 86 °F |
| Storage/Refrigeration Temperature | 30 °C |
| Termination Style | Button Top (Extending) |
| Voltage - Rated | 3.6 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 30 | $ 12.25 | |
| 480 | $ 11.20 | |||
| 1440 | $ 10.85 | |||
| Bulk | 1 | $ 10.99 | ||
Description
General part information

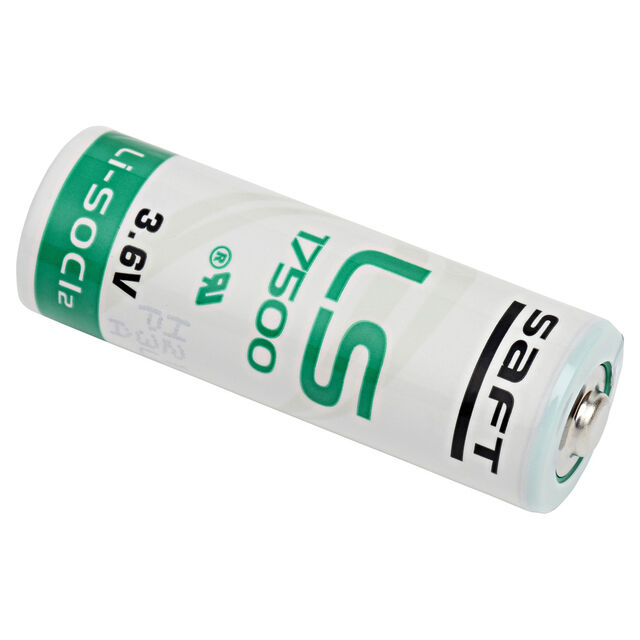

LS17500
A Lithium 3.6 V Battery Non-Rechargeable (Primary)
