300028
ActiveAmphenol Alden Products Company
CONN PLUG MALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
300028
ActiveAmphenol Alden Products Company
CONN PLUG MALE 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 300028 |
|---|---|
| Applications | Medical |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Material | Brass |
| Current Rating (Amps) | 3 A, 7 A |
| Fastening Type | Latch Lock |
| Features | Strain Relief |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Orientation | 1 |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 30.05 | |
| 10 | $ 26.31 | |||
| 25 | $ 25.17 | |||
| 50 | $ 24.36 | |||
| 100 | $ 23.55 | |||
| 250 | $ 22.25 | |||
Description
General part information
300028

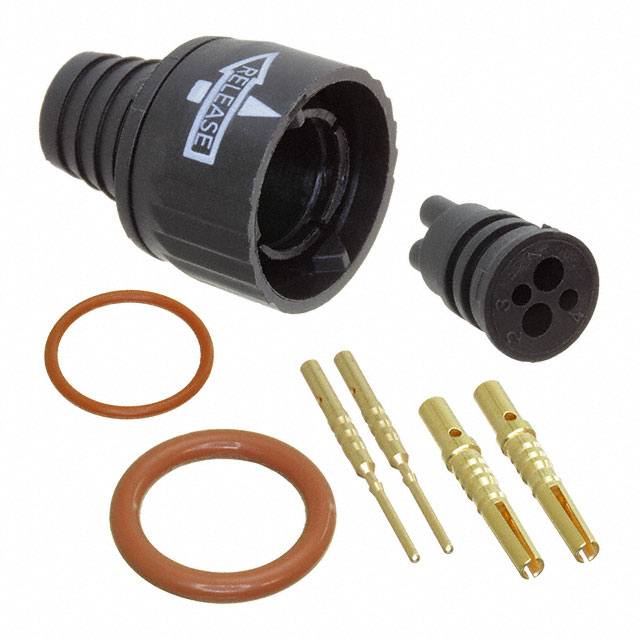

4 Position Circular Connector Plug, Male Pins Solder Cup
