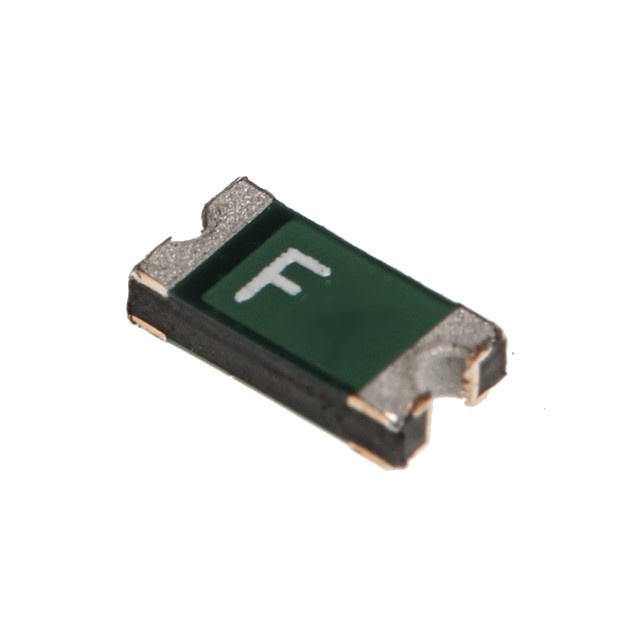

FSMD035-30-1206R

Active

RFE/Fuzetec

RESETTABLE FUSE - SMD, 1206 SIZE

Search across all available documentation for this part.

Active

RFE/Fuzetec

RESETTABLE FUSE - SMD, 1206 SIZE

Technical Specifications

Parameters and characteristics for this part

Specification	FSMD035-30-1206R

Approval Agency	cUL, TUV, UL
Current - Hold (Ih) (Max) [Max]	350 mA
Current - Max [Max]	100 A
Current - Trip (It)	750 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3216 Metric
Package / Case	1206
Package / Case	Concave
Resistance - Initial (Ri) (Min) [Min]	300 mOhms
Resistance - Post Trip (R1) (Max) [Max]	1.2 Ohms
Size / Dimension [x]	3.25 mm
Size / Dimension [x]	0.128 in
Size / Dimension [y]	1.65 mm
Size / Dimension [y]	0.065 in
Thickness (Max) [Max]	0.051 in
Thickness (Max) [Max]	1.3 mm
Time to Trip	100 ms
Voltage - Max [Max]	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

PTC Resettable Fuse 30V 350 mA Ih Surface Mount 1206 (3216 Metric), Concave
