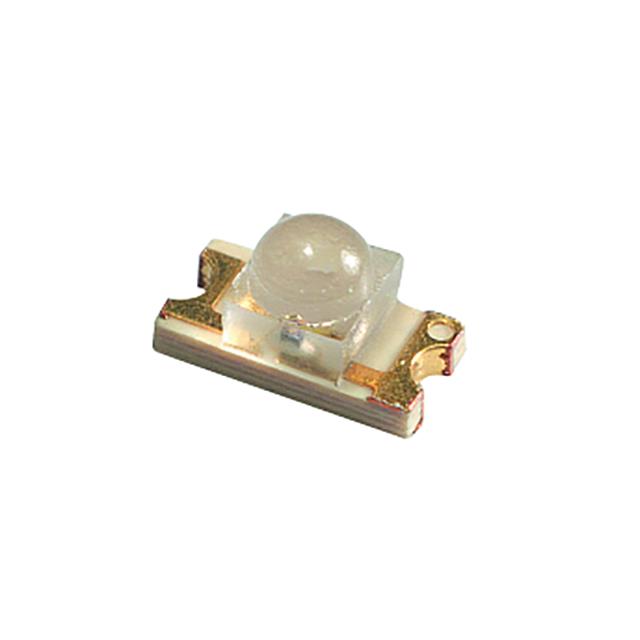

OLS-330 GC525-X-TU
ActiveEPIGAP OSA Photonics
LED GREEN 590NM 1206 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OLS-330 GC525-X-TU
ActiveEPIGAP OSA Photonics
LED GREEN 590NM 1206 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OLS-330 GC525-X-TU |
|---|---|
| Color | Green |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 2 mm |
| Lens Size [diameter] | 1.5 mm |
| Lens Style | Round with Domed Top |
| Millicandela Rating | 2700 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 1206 |
| Viewing Angle [custom] | 40 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
| Wavelength - Dominant | 525 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.48 | |
| 10 | $ 0.93 | |||
| 100 | $ 0.69 | |||
| Digi-Reel® | 1 | $ 1.48 | ||
| 10 | $ 0.93 | |||
| 100 | $ 0.69 | |||
| Tape & Reel (TR) | 500 | $ 0.64 | ||
| 1000 | $ 0.52 | |||
| 2500 | $ 0.50 | |||
| 5000 | $ 0.49 | |||
| 12500 | $ 0.47 | |||
Description
General part information
OLS-330 GC525-X-TU
Green 525nm LED Indication - Discrete 3.2V 1206 (3216 Metric)
