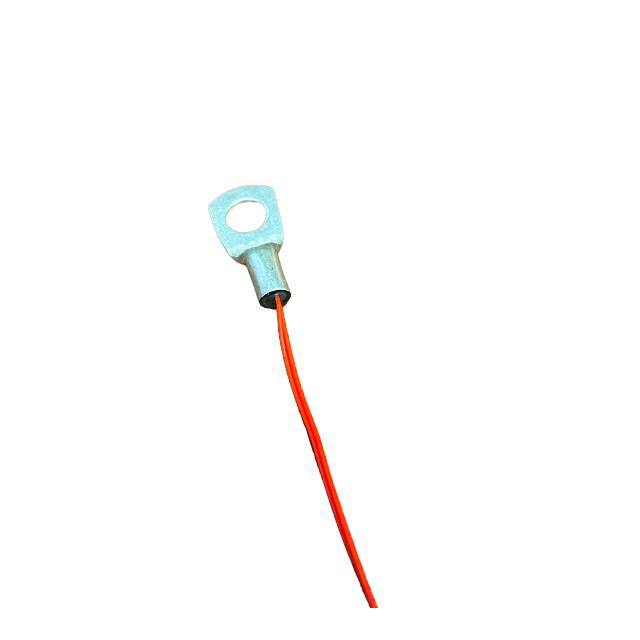

RTS103C1R2M35L500
ActiveAMPHENOL ADVANCED SENSORS
RING TERMINAL TEMP, 10K 2%, M3.5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RTS103C1R2M35L500
ActiveAMPHENOL ADVANCED SENSORS
RING TERMINAL TEMP, 10K 2%, M3.5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RTS103C1R2M35L500 |
|---|---|
| B25/85 | 3977 K |
| Length - Lead Wire [x] | 1.97 in |
| Length - Lead Wire [x] | 50 mm |
| Mounting Type | Free Hanging |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Ring Lug |
| Power - Max [Max] | 75 mW |
| Resistance in Ohms @ 25°C | 10k |
| Resistance Tolerance | 2 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.05 | |
| 5 | $ 2.57 | |||
| 10 | $ 2.39 | |||
| 25 | $ 2.17 | |||
| 50 | $ 2.02 | |||
| 100 | $ 1.87 | |||
| 500 | $ 1.58 | |||
| 1000 | $ 1.47 | |||
| 5000 | $ 1.24 | |||
Description
General part information
RTS103C1R2M35L500
NTC Thermistor 10k Ring Lug
