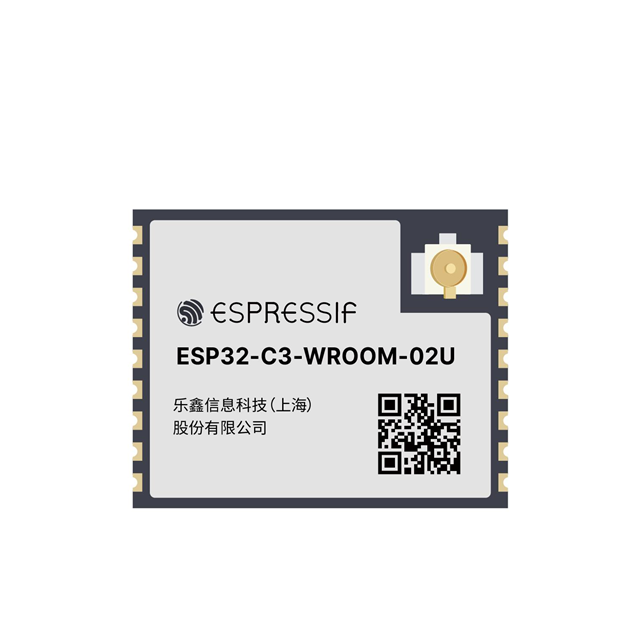

ESP32-C3-WROOM-02U-N4
ActiveEspressif Systems
RF TXRX MOD BT WIFIU.FL SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ESP32-C3-WROOM-02U-N4
ActiveEspressif Systems
RF TXRX MOD BT WIFIU.FL SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ESP32-C3-WROOM-02U-N4 |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Receiving [Max] | 84 mA |
| Current - Receiving [Min] | 82 mA |
| Current - Transmitting [Max] | 345 mA |
| Current - Transmitting [Min] | 280 mA |
| Data Rate | 150 Mbps |
| Frequency | 2.4 GHz |
| Memory Size | 4 MB, 384 kB, 408 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 19-SMD Module |
| Power - Output | 20.5 dBm |
| Protocol | Bluetooth v5.0, 802.11b/g/n |
| RF Family/Standard | WiFi, Bluetooth |
| Sensitivity | -98 dBm |
| Serial Interfaces | JTAG, ADC, UART, GPIO, I2S, USB, I2C, PWM, SPI |
| Utilized IC / Part | ESP32-C3 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.95 | |
| Digi-Reel® | 1 | $ 1.95 | ||
| Tape & Reel (TR) | 650 | $ 1.95 | ||
Description
General part information
ESP32-C3-WROOM-02U-N4
Bluetooth, WiFi 802.11b/g/n, Bluetooth v5.0 Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
