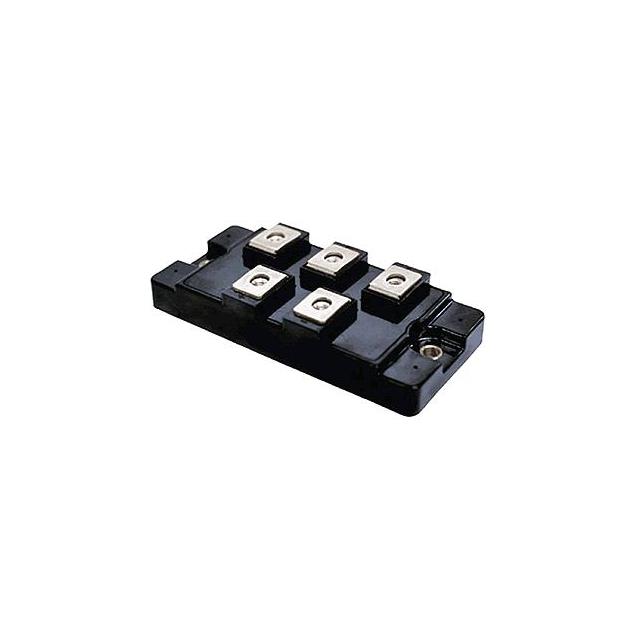

DF150AB160
ActiveSanRex Corporation
DIOE MODULE 1600V 150A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF150AB160
ActiveSanRex Corporation
DIOE MODULE 1600V 150A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF150AB160 |
|---|---|
| Current - Average Rectified (Io) | 150 A |
| Current - Reverse Leakage @ Vr | 15 mA |
| Diode Type | Three Phase |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V |
| Voltage - Peak Reverse (Max) | 1.6 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 12 | $ 59.30 | |
Description
General part information
DF150AB160
Bridge Rectifier Three Phase Standard 1.6 kV Chassis Mount
