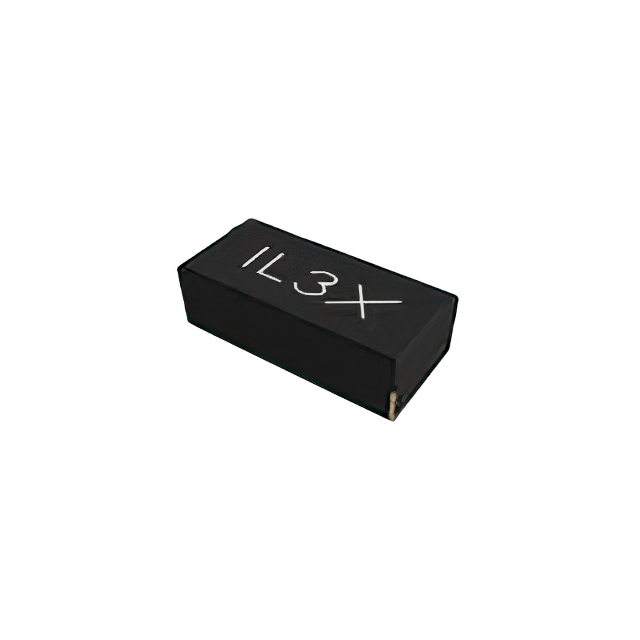

IL3X-HX5F7-32.768KHZ
ObsoleteILSI
CRYSTAL 32.7680KHZ 7PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IL3X-HX5F7-32.768KHZ
ObsoleteILSI
CRYSTAL 32.7680KHZ 7PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IL3X-HX5F7-32.768KHZ |
|---|---|
| ESR (Equivalent Series Resistance) | 65 kOhms |
| Frequency | 32.768 kHz |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) [Max] [z] | 0.035 " |
| Height - Seated (Max) [Max] [z] | 0.9 mm |
| Load Capacitance | 7 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 1.5 mm |
| Size / Dimension [y] | 0.059 " |
| Type | kHz Crystal (Tuning Fork) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IL3X-HX5F7-32.768KHZ
32.768 kHz ±20ppm Crystal 7pF 65 kOhms 2-SMD, No Lead
