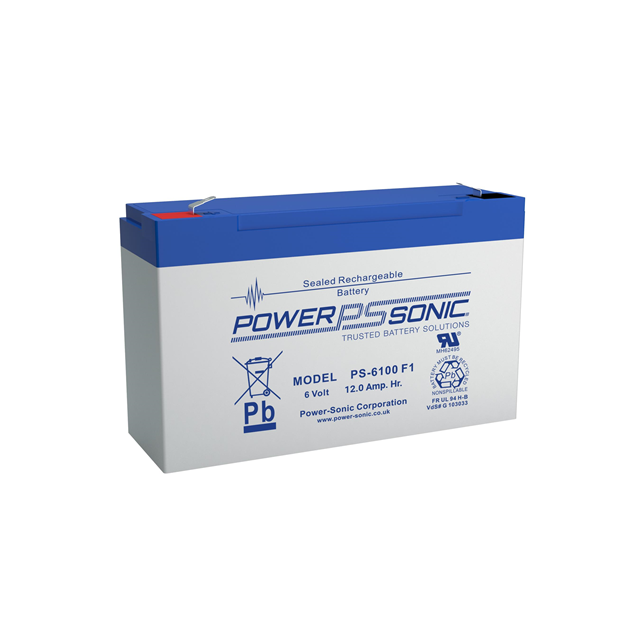

PS-6100 F1
ActivePower Sonic
BATTERY LEAD ACID 6V 12AH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PS-6100 F1
ActivePower Sonic
BATTERY LEAD ACID 6V 12AH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PS-6100 F1 |
|---|---|
| Battery Chemistry | Sealed Lead Acid (SLA, VRLA) |
| Capacity | 12 Ah |
| Discharge Rate | 20 Hr |
| Size / Dimension [x] | 151.1 mm |
| Size / Dimension [x] | 5.95 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 94 mm |
| Size / Dimension [z] | 3.7 in |
| Standard Charge Current | 600 mA |
| Standard Charge Time | 20 Hrs |
| Termination Style | Spade, .187" (4.7mm) |
| Voltage - Rated | 6 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 26.43 | |
| 10 | $ 21.89 | |||
| 50 | $ 19.19 | |||
| 100 | $ 18.13 | |||
| 250 | $ 16.82 | |||
| 500 | $ 15.89 | |||
Description
General part information
PS-6100 F1
6 V Sealed Lead Acid (SLA, VRLA) Battery Rechargeable (Secondary) 12Ah
Documents
Technical documentation and resources
