1DC502JEC
ActiveAMETHERM
THERMISTOR NTC 5KOHM 3934K DISC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1DC502JEC
ActiveAMETHERM
THERMISTOR NTC 5KOHM 3934K DISC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1DC502JEC |
|---|---|
| B Value Tolerance | 3 % |
| B0/50 | 3892 K |
| B25/100 | 3999 K |
| B25/50 | 3934 K |
| B25/75 | 3960 K |
| B25/85 | 3988 K |
| Length - Lead Wire [x] | 1.5 in |
| Length - Lead Wire [x] | 38 mm |
| Mounting Type | Through Hole |
| Package / Case | Disc |
| Package / Case [diameter] | 2.5 mm |
| Package / Case [y] | 2 mm |
| Power - Max [Max] | 500 mW |
| Resistance in Ohms @ 25°C | 5k |
| Resistance Tolerance | 10% |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.39 | |
| 5 | $ 4.84 | |||
| 10 | $ 4.64 | |||
| 25 | $ 4.39 | |||
| 50 | $ 4.23 | |||
| 100 | $ 4.08 | |||
| 500 | $ 3.77 | |||
| 1000 | $ 3.66 | |||
Description
General part information
1DC502JEC

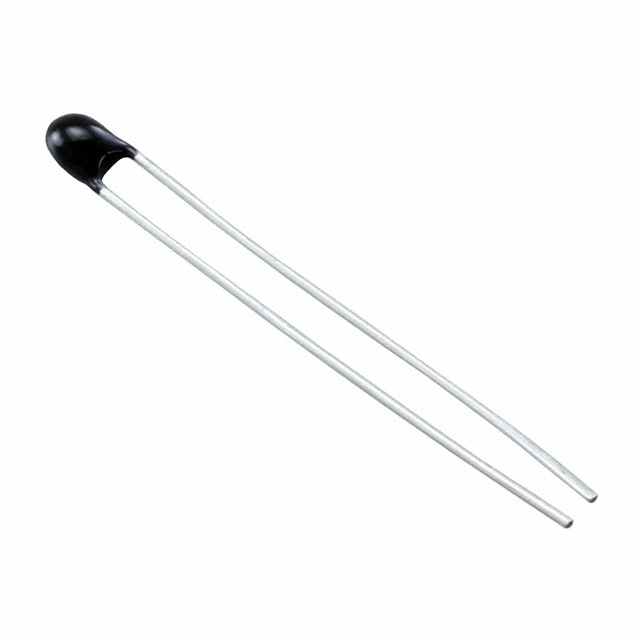

NTC Thermistor 5k Disc, 2.5mm Dia x 2.0mm W
