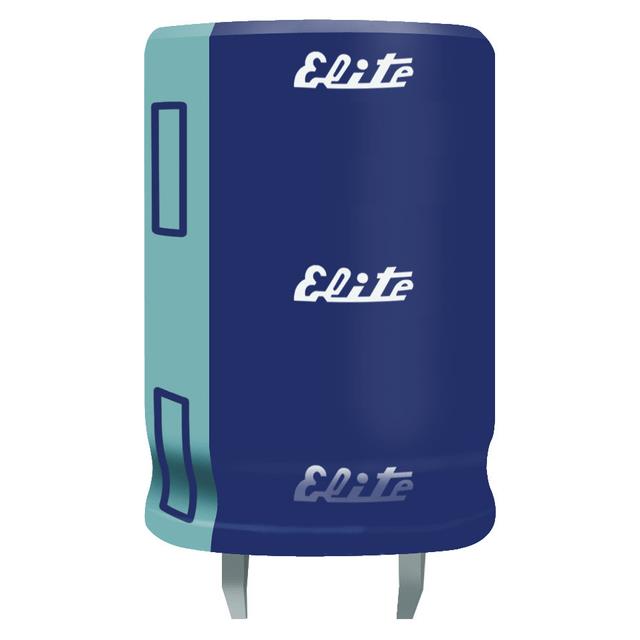

GV2S102MK63570Y
ActiveChinsan (Elite)
CAP ALUM 1000UF 20% 420V SNAP TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GV2S102MK63570Y |
|---|---|
| Applications | General Purpose |
| Capacitance | 1000 µF |
| Height - Seated (Max) [Max] [z] | 2.835 in |
| Height - Seated (Max) [Max] [z] | 72 mm |
| Lead Spacing | 22.5 mm |
| Lead Spacing | 0.886 in |
| Lifetime @ Temp. | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Radial, Can - Snap-In |
| Polarization | Polar |
| Ripple Current @ Low Frequency | 3.72 A |
| Size / Dimension [diameter] | 1.378 in |
| Size / Dimension [diameter] | 35 mm |
| Tolerance | 20 % |
| Voltage - Rated | 420 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 8.51 | |
Description
General part information
GV2S102MK63570Y
1000 µF 420 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 85°C
