2DB102J-EC
ActiveAMETHERM
THERMISTOR NTC 1KOHM 3485K DISC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2DB102J-EC
ActiveAMETHERM
THERMISTOR NTC 1KOHM 3485K DISC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2DB102J-EC |
|---|---|
| B Value Tolerance | 3 % |
| B0/50 | 3445 K |
| B25/100 | 3532 K |
| B25/50 | 3485 K |
| B25/75 | 3512 K |
| B25/85 | 3521 K |
| Length - Lead Wire [x] | 1.5 in |
| Length - Lead Wire [x] | 38 mm |
| Mounting Type | Through Hole |
| Power - Max [Max] | 750 mW |
| Resistance in Ohms @ 25°C | 1k |
| Resistance Tolerance | 10% |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.40 | |
| 5 | $ 2.14 | |||
| 10 | $ 2.04 | |||
| 25 | $ 1.92 | |||
| 50 | $ 1.84 | |||
| 100 | $ 1.77 | |||
| 500 | $ 1.62 | |||
| 1000 | $ 1.57 | |||
| 5000 | $ 1.46 | |||
Description
General part information
2DB102J-EC

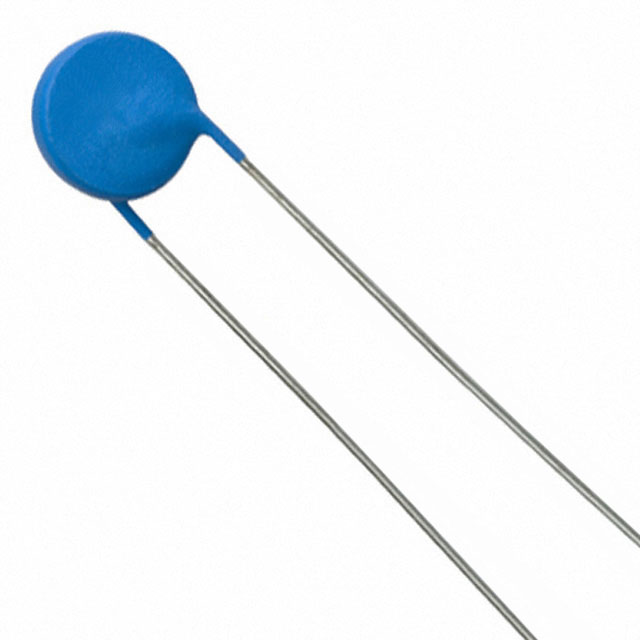

NTC Thermistor 1k Disc, 5.1mm Dia x 0.6mm W
