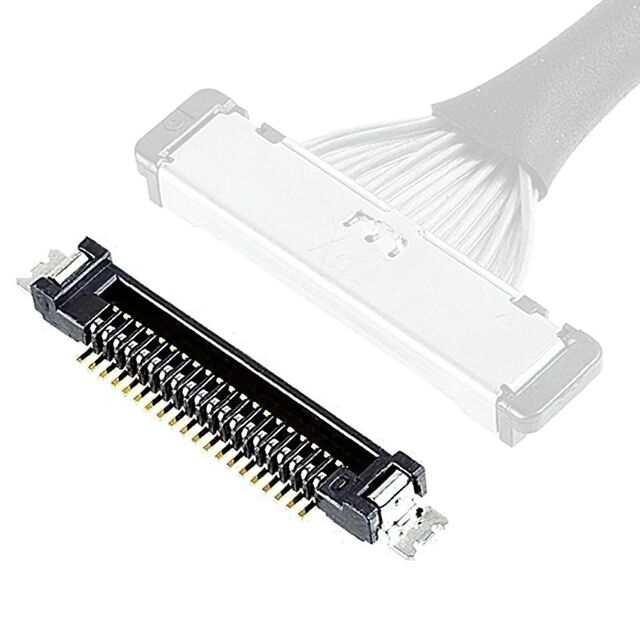

20374-R40E-31
ActiveI-PEX
CABLINE-SS RECEPTACLE, 40P
Deep-Dive with AI
Search across all available documentation for this part.
20374-R40E-31
ActiveI-PEX
CABLINE-SS RECEPTACLE, 40P
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 20374-R40E-31 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 3.94 µin |
| Contact Finish Thickness - Mating | 0.1 µm |
| Contact Finish Thickness - Post | 0.05 µm |
| Contact Finish Thickness - Post | 1.97 µin |
| Contact Material | Phosphor Bronze |
| Contact Shape | Rectangular |
| Contact Type | Female Socket |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Push-Pull |
| Features | Pick and Place, Solder Retention |
| Insulation Color | Black |
| Insulation Height | 0.063 in |
| Insulation Height | 1.6 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.016 in |
| Pitch - Mating | 0.4 mm |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.10 | |
| 10 | $ 1.83 | |||
| 25 | $ 1.75 | |||
| 50 | $ 1.71 | |||
| 100 | $ 1.63 | |||
| 250 | $ 1.48 | |||
| 500 | $ 1.36 | |||
| 1000 | $ 1.17 | |||
| 2500 | $ 1.09 | |||
| Digi-Reel® | 1 | $ 2.10 | ||
| 10 | $ 1.83 | |||
| 25 | $ 1.75 | |||
| 50 | $ 1.71 | |||
| 100 | $ 1.63 | |||
| 250 | $ 1.48 | |||
| 500 | $ 1.36 | |||
| 1000 | $ 1.17 | |||
| 2500 | $ 1.09 | |||
| Tape & Reel (TR) | 6000 | $ 0.98 | ||
Description
General part information
20374-R40E-31
40 Position Receptacle Connector 0.016" (0.40mm) Surface Mount Gold
