AN050201-01H
ActiveSevskiy GmbH
RF ANT 433MHZ/868MHZ/5.8GHZ PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AN050201-01H
ActiveSevskiy GmbH
RF ANT 433MHZ/868MHZ/5.8GHZ PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AN050201-01H |
|---|---|
| Antenna Type | PCB Trace |
| Applications | IoT, WiFi 5, ISM, RFID, Smart Meters, LP-WAN |
| Frequency (Center/Band) | 5.5375 GHz, 433.93 MHz, 866.5 MHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 870 MHz, 434.8 MHz, 5.925 GHz |
| Frequency Range [Min] | 863 MHz, 5.15 GHz, 433.05 MHz |
| Gain | -1 dBi, 0.6 dBi, 3.8 dBi |
| Height (Max) [Max] [z] | 1 mm |
| Height (Max) [Max] [z] | 0.039 in |
| Mounting Type | Bracket, Adhesive |
| Number of Bands | 3 |
| Power - Max [Max] | 10 W |
| Return Loss | -10 dB, -5 dB, -7 dB |
| RF Family/Standard | Lora, General ISM |
| Termination | I-PEX MHF1, U.FL (UMCC) |
| VSWR | 2.62, 1.93, 3.57 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.89 | |
| 10 | $ 2.78 | |||
| 50 | $ 2.67 | |||
| 100 | $ 2.57 | |||
| 500 | $ 2.47 | |||
| 1000 | $ 2.38 | |||
| 5000 | $ 2.29 | |||
| 10000 | $ 2.20 | |||
| 50000 | $ 2.12 | |||
Description
General part information
AN050201-01H

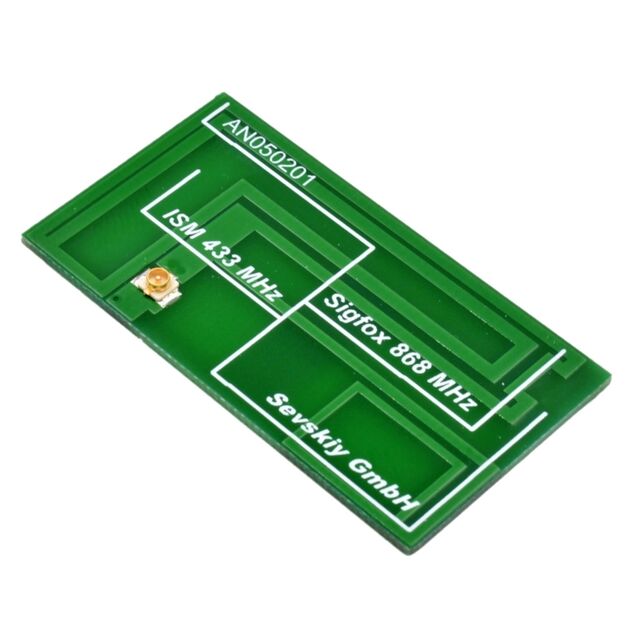

RF ANTENNA IoT, ISM, LP-WAN, RFID, Smart Meters, WiFi 5 PCB Trace U.FL (UMCC), I-PEX MHF1 Adhesive, Bracket
