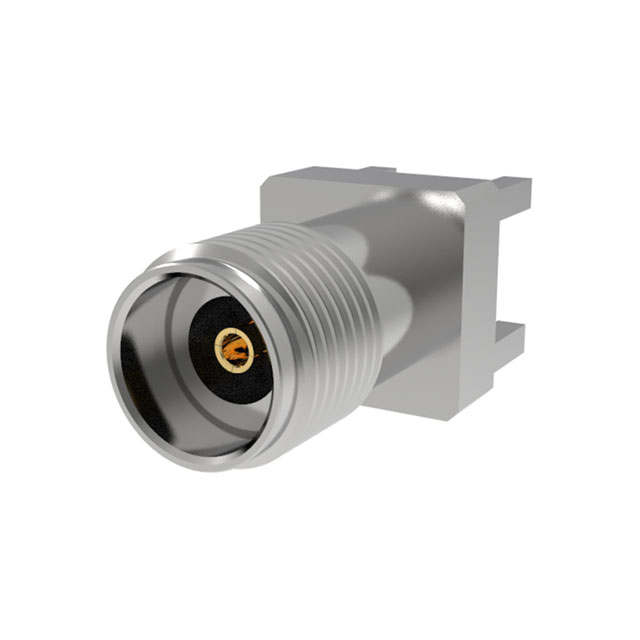

TMB-V9FS-3SM
ActiveCarlisleIT
2.92(F)STR,VL,MIXED-TECH,SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMB-V9FS-3SM |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | 2.92 mm |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Frequency - Max [Max] | 40 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Insertion Loss | 0.6 dB |
| Mating Cycles | 500 |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 47.29 | |
| 10 | $ 36.61 | |||
| 25 | $ 33.22 | |||
| 40 | $ 31.64 | |||
| 80 | $ 29.50 | |||
| 230 | $ 26.63 | |||
Description
General part information
TMB-V9FS-3SM
2.92mm Connector Jack, Female Socket 50 Ohms Through Hole Solder
