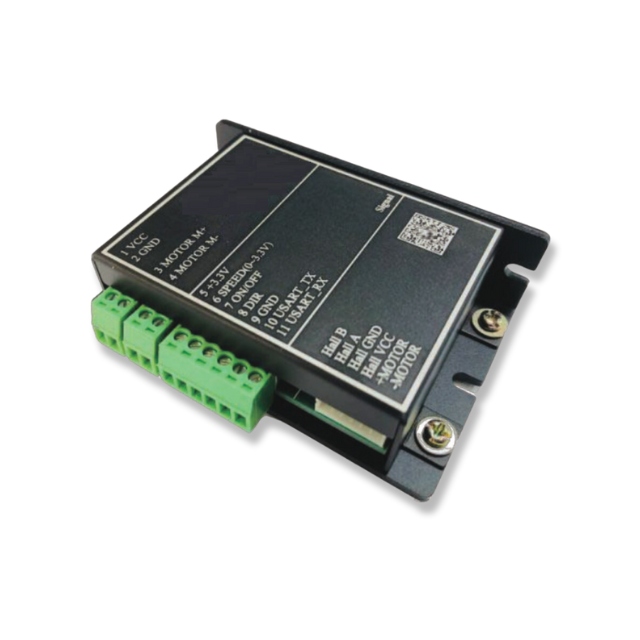

MOT-DRV-S
ActiveISL Products International
BRUSHED DC MOTOR DRIVER/SPEED CO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MOT-DRV-S
ActiveISL Products International
BRUSHED DC MOTOR DRIVER/SPEED CO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MOT-DRV-S |
|---|---|
| Control / Drive Type | Brushed |
| Current - Output | 5 A |
| Features | Speed Control, Current Limit, Open/Closed Loop |
| Interface | USB, UART, PWM |
| Motor Type | Brushed DC |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Type | Module |
| Voltage - Load [Max] | 30 V |
| Voltage - Load [Min] | 10 V |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
| Wattage - Load | 100 VA |
| Weight | 0.188 lb |
| Weight | 85.28 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 184.00 | |
| 10 | $ 165.92 | |||
Description
General part information
MOT-DRV-S
Brushed 10 ~ 30VDC Supply 5A 10 ~ 30VDC Load
