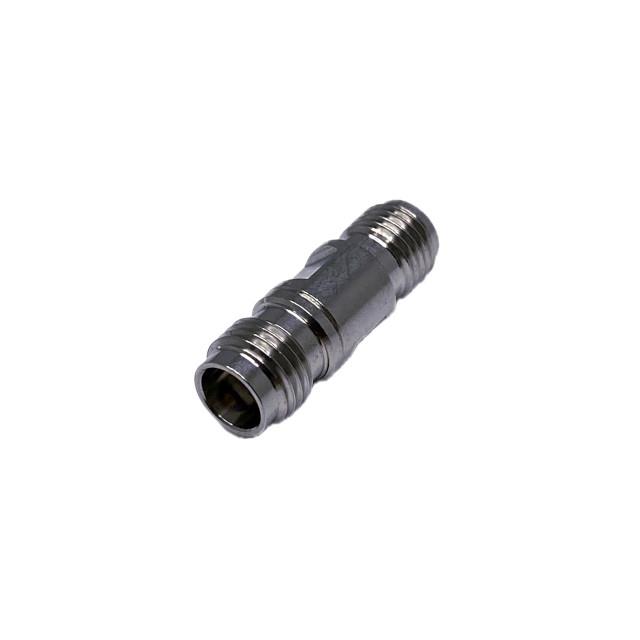

2.4J-K292J
ActiveTo-Conne Co., Ltd. (TYC)
COAX ADAPT 2.4MM TO 2.92MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2.4J-K292J
ActiveTo-Conne Co., Ltd. (TYC)
COAX ADAPT 2.4MM TO 2.92MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2.4J-K292J |
|---|---|
| Adapter Series [Max] | 2.92 mm |
| Adapter Series [Min] | 2.4 mm |
| Adapter Type | Jack to Jack |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | 2.4 mm |
| Convert To (Adapter End) | 2.92 mm |
| Convert To (Adapter End) | OS-2.9 Jack, Female Socket |
| Frequency - Max [Max] | 40 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 119.79 | |
| 10 | $ 107.81 | |||
| 25 | $ 97.03 | |||
| 50 | $ 87.33 | |||
Description
General part information
2.4J-K292J
Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Jack, Female Socket To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohms
