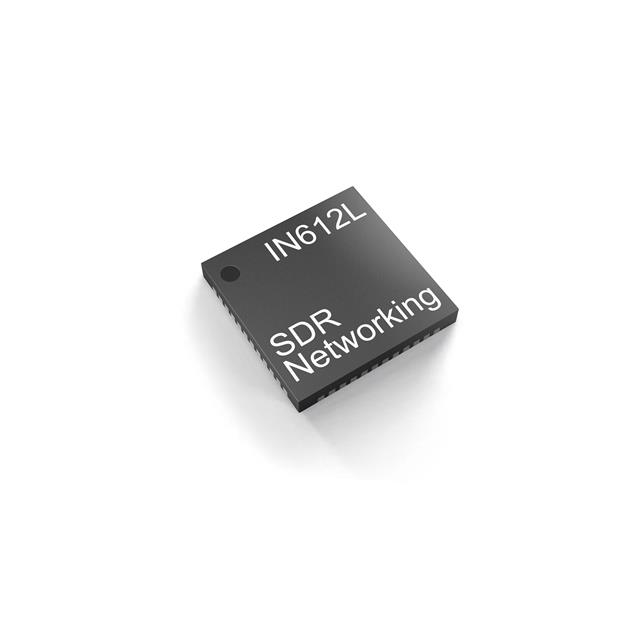

IN612L-Q1-R-G4C0I
ActiveInPlay Inc
IC RF TXRX+MCU BLE 48QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IN612L-Q1-R-G4C0I
ActiveInPlay Inc
IC RF TXRX+MCU BLE 48QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IN612L-Q1-R-G4C0I |
|---|---|
| Current - Receiving [Max] | 8.3 mA |
| Current - Receiving [Min] | 7 mA |
| Current - Transmitting [Max] | 9.6 mA |
| Current - Transmitting [Min] | 6.5 mA |
| Data Rate (Max) | 2 Mbps |
| Frequency | 2.4 GHz |
| GPIO | 30 |
| Memory Size | 256 kB, 96 kB, 512 kB |
| Modulation | GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 48-VFQFN Exposed Pad |
| Power - Output | 3 dBm |
| Protocol | Bluetooth v5.0 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -104.5 dBm |
| Serial Interfaces | PWM, I2C, UART, ADC, PDM, SPI, GPIO, I2S |
| Supplier Device Package | 48-QFN (6x6) |
| Type | TxRx + MCU |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.35 | |
| 10 | $ 4.81 | |||
| 25 | $ 4.54 | |||
| 100 | $ 3.94 | |||
| 250 | $ 3.74 | |||
| 500 | $ 3.35 | |||
| 1000 | $ 2.83 | |||
| Digi-Reel® | 1 | $ 6.61 | ||
| 10 | $ 4.48 | |||
| 25 | $ 3.93 | |||
| 100 | $ 3.31 | |||
| 250 | $ 3.01 | |||
| 500 | $ 2.83 | |||
| 1000 | $ 2.68 | |||
| Tape & Reel (TR) | 4000 | $ 2.69 | ||
Description
General part information
IN612L-Q1-R-G4C0I
IC RF TxRx + MCU Bluetooth Bluetooth v5.0 2.4GHz 48-VFQFN Exposed Pad
