AC1020
ActiveTalema Group LLC
CURR SENSE XFMR 20A T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AC1020
ActiveTalema Group LLC
CURR SENSE XFMR 20A T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AC1020 |
|---|---|
| Current Rating (Amps) | 20 A |
| Current Ratio | 1000:1 |
| DC Resistance (DCR) | 41.8 Ohm |
| Frequency Range [Max] | 60 Hz |
| Frequency Range [Min] | 50 Hz |
| Height - Seated (Max) [Max] [z] | 0.937 in |
| Height - Seated (Max) [Max] [z] | 23.8 mm |
| Mounting Type | Through Hole |
| Size / Dimension [x] | 0.937 in |
| Size / Dimension [x] | 23.8 mm |
| Size / Dimension [y] | 11.12 mm |
| Size / Dimension [y] | 0.438 " |
| Termination Style | PC Pin |
| Type | Non-Invasive (Solid Core) |
| Weight | 16.33 g |
| Weight | 0.036 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 5.42 | |
| 10 | $ 4.90 | |||
| 25 | $ 4.70 | |||
| 50 | $ 4.56 | |||
| 100 | $ 4.41 | |||
| 250 | $ 4.23 | |||
| 500 | $ 4.10 | |||
| 1000 | $ 3.97 | |||
Description
General part information
AC1020

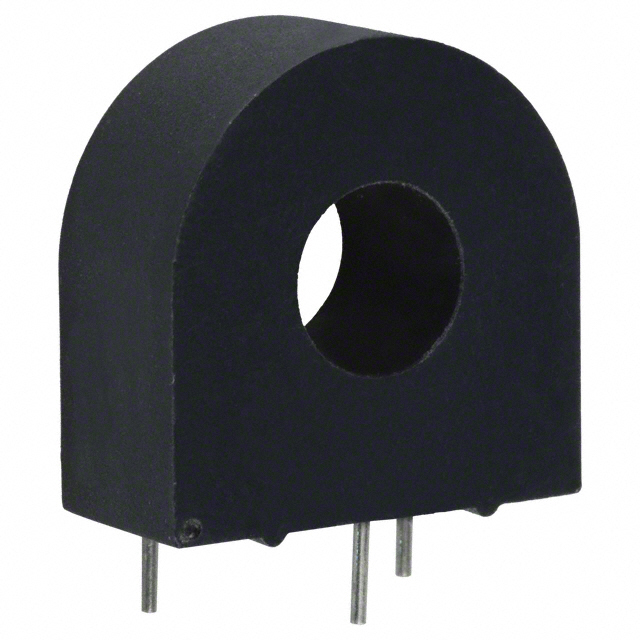

20 A Current Sense Transformer 50/60Hz 41.8Ohm Through Hole
