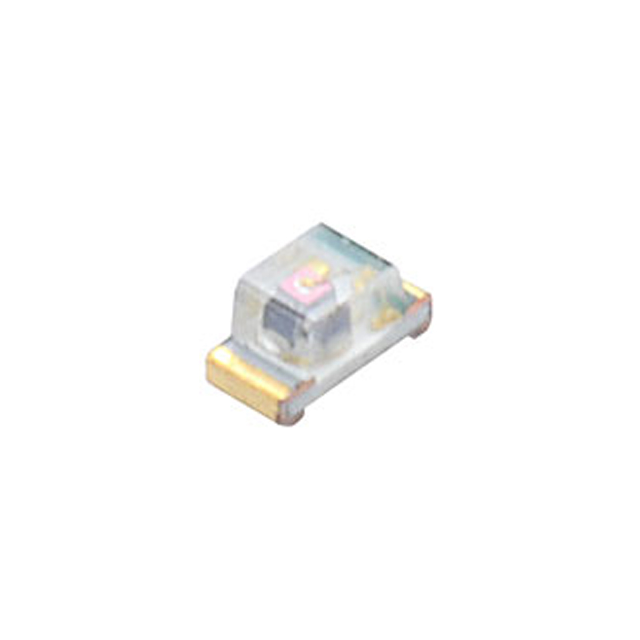

CS42EB2C
ActiveChromeLED
LED BLUE CLEAR CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CS42EB2C
ActiveChromeLED
LED BLUE CLEAR CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CS42EB2C |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 5 mA |
| Height (Max) [Max] | 0.25 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1 mm |
| Lens Size [y] | 0.5 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 30 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension [x] | 1 mm |
| Size / Dimension [y] | 0.5 mm |
| Supplier Device Package | Chip LED |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 2.8 V |
| Wavelength - Dominant | 465 nm |
| Wavelength - Peak | 460 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 0.39 | |
Description
General part information
CS42EB2C
Blue 465nm LED Indication - Discrete 2.8V 0402 (1005 Metric)
