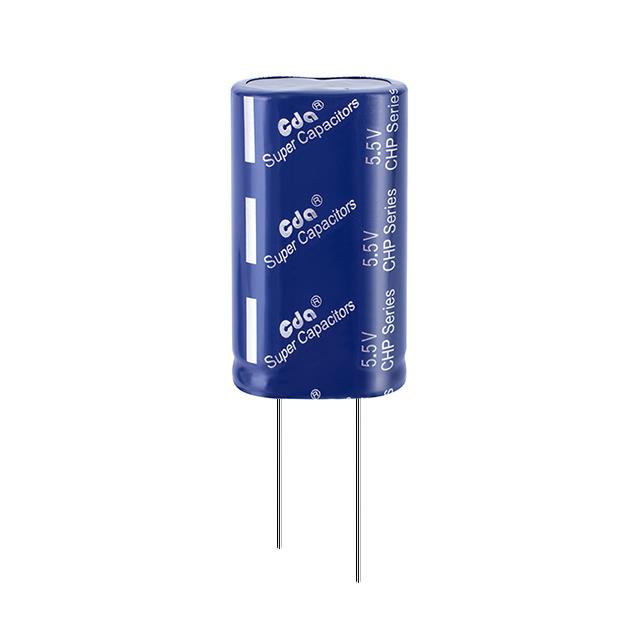

CHP5R5L206R-TW
ActiveCDA (Zhifengwei Technology)
5.5V 20F 36*18*42 T/DA EDLC
Deep-Dive with AI
Search across all available documentation for this part.
CHP5R5L206R-TW
ActiveCDA (Zhifengwei Technology)
5.5V 20F 36*18*42 T/DA EDLC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CHP5R5L206R-TW |
|---|---|
| Capacitance | 20 F |
| ESR (Equivalent Series Resistance) | 36 mOhm |
| Height - Seated (Max) [Max] [z] | 1.713 in |
| Height - Seated (Max) [Max] [z] | 43.5 mm |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can |
| Size / Dimension [x] | 1.417 in |
| Size / Dimension [x] | 36 mm |
| Size / Dimension [y] | 18 mm |
| Size / Dimension [y] | 0.709 " |
| Termination | PC Pins |
| Voltage - Rated | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 17.40 | |
| 10 | $ 12.62 | |||
| 50 | $ 10.68 | |||
| 100 | $ 10.07 | |||
| 500 | $ 9.03 | |||
| 1000 | $ 8.70 | |||
Description
General part information
CHP5R5L206R-TW
20 F (EDLC) Supercapacitor 5.5 V Radial, Can 36mOhm @ 1kHz 1000 Hrs @ 85°C
Documents
Technical documentation and resources
No documents available
