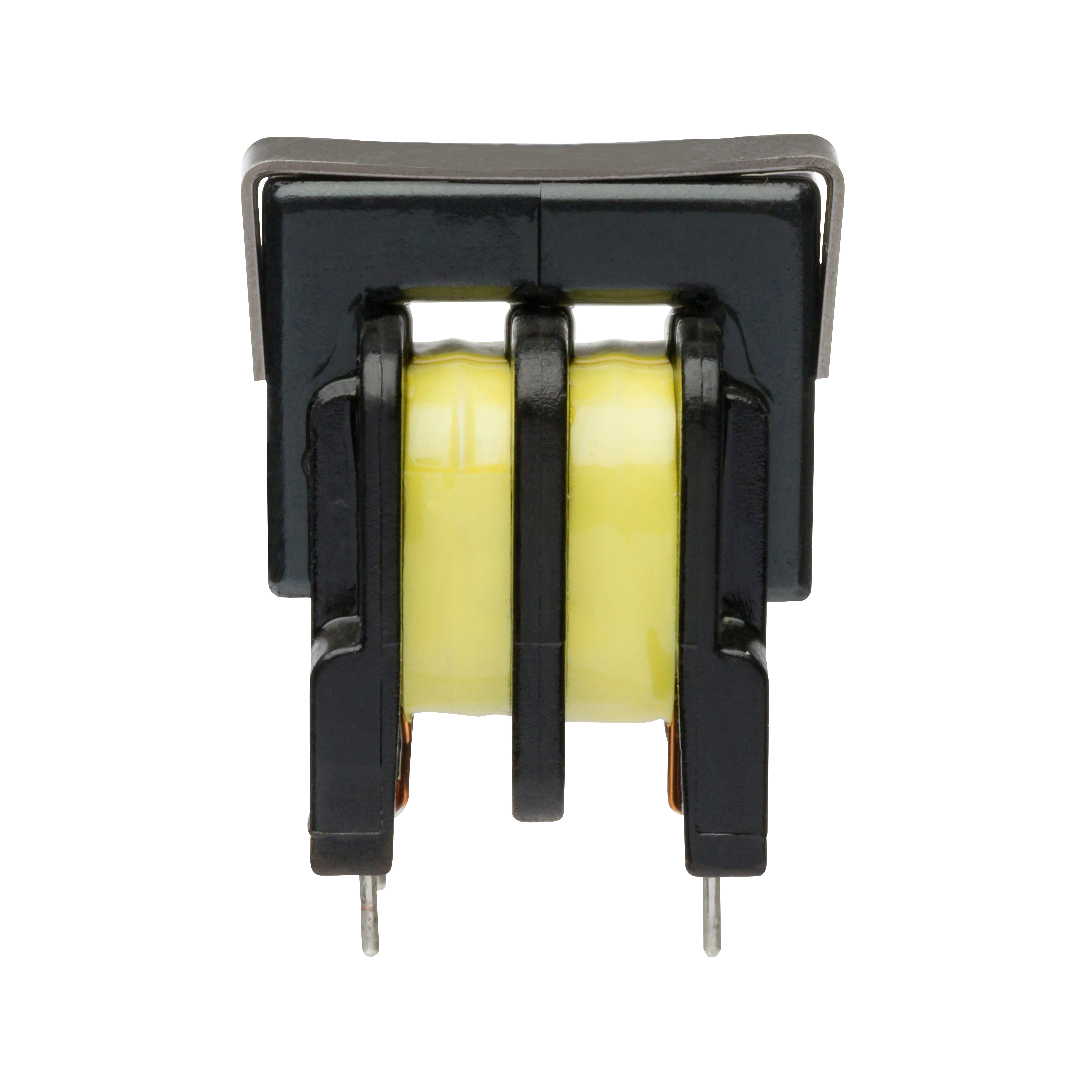

PMCU-0330
ActivePremier Magnetics
CMC 400MA 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PMCU-0330
ActivePremier Magnetics
CMC 400MA 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PMCU-0330 |
|---|---|
| Current Rating (Max) [Max] | 400 mA |
| DC Resistance (DCR) (Max) [Max] | 2 Ohm |
| Filter Type | Power Line |
| Height (Max) [Max] | 0.854 in |
| Height (Max) [Max] | 21.7 mm |
| Inductance @ Frequency | 33 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 5.24 | |
| 25 | $ 4.85 | |||
| 50 | $ 4.45 | |||
| 100 | $ 3.93 | |||
| 250 | $ 3.41 | |||
| 500 | $ 2.75 | |||
| 1000 | $ 1.99 | |||
Description
General part information
PMCU-0330
33 mH 2 Line Common Mode Choke Through Hole 400mA DCR 2Ohm
Documents
Technical documentation and resources
