YW05020012BL
ActiveYS TECH USA

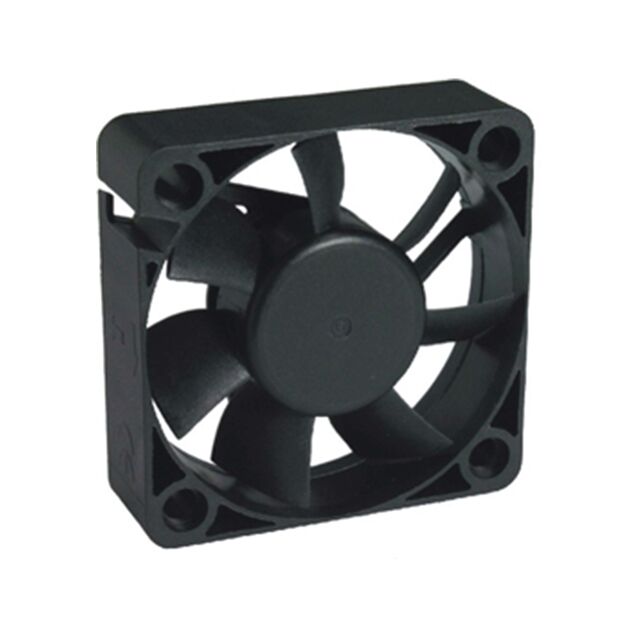

FAN AXIAL 50X20MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
YW05020012BL
ActiveYS TECH USA
FAN AXIAL 50X20MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | YW05020012BL |
|---|---|
| Air Flow | 10 CFM |
| Air Flow | 0.28 mł/min |
| Bearing Type | Ball |
| Current Rating (Amps) | 60 mA |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 80000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 23.5 dB(A) |
| Power (Watts) | 720 mW |
| RPM | 3900 RPM |
| Size / Dimension [x] | 50 mm |
| Size / Dimension [z] | 50 mm |
| Static Pressure | 24.5 Pa |
| Static Pressure | 0.098 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 7 V |
| Width [y] | 20 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 7.10 | |
| 10 | $ 6.33 | |||
| 25 | $ 6.05 | |||
| 50 | $ 5.84 | |||
| 100 | $ 5.65 | |||
| 250 | $ 5.39 | |||
| 500 | $ 5.21 | |||
| 1000 | $ 5.03 | |||
Description
General part information
YW05020012BL
Fan Tubeaxial 12VDC Square - 50mm L x 50mm H Ball 10.0 CFM (0.280mł/min) 2 Wire Leads
